Diagram Sync

Diagram Sync automatically exports your Mermaid diagrams to SVG and or PNG images whenever you save or close a Mermaid file (.mmd). This enables you to effortlessly keep your documentation images up-to-date without manual export steps.

How It Works

When you save or close a Mermaid file, Diagram Sync:

1. Checks if the file matches any of your configured patterns
2. Renders the diagram using Mermaid Studio’s Mermaid diagram export service
3. Saves the output as SVG and/or PNG in the same directory as the source file with an appended extension.

For example, saving docs/architecture.mmd creates docs/architecture.mmd.svg alongside it.

Getting Started

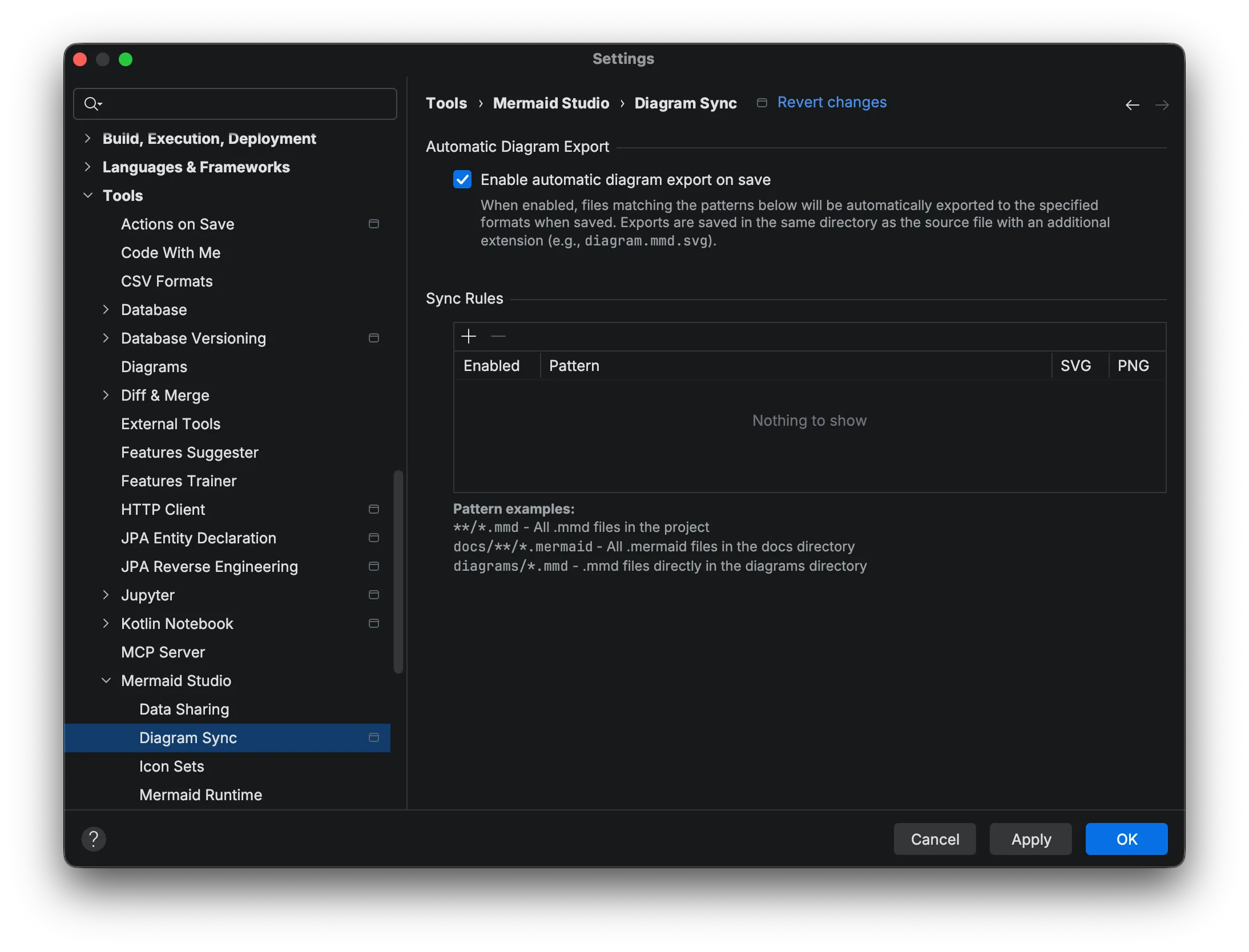

1. Open Settings ( Command + Comma Command, Control + Alt + S CtrlAltS ) and navigate to Mermaid Studio > Diagram Sync.

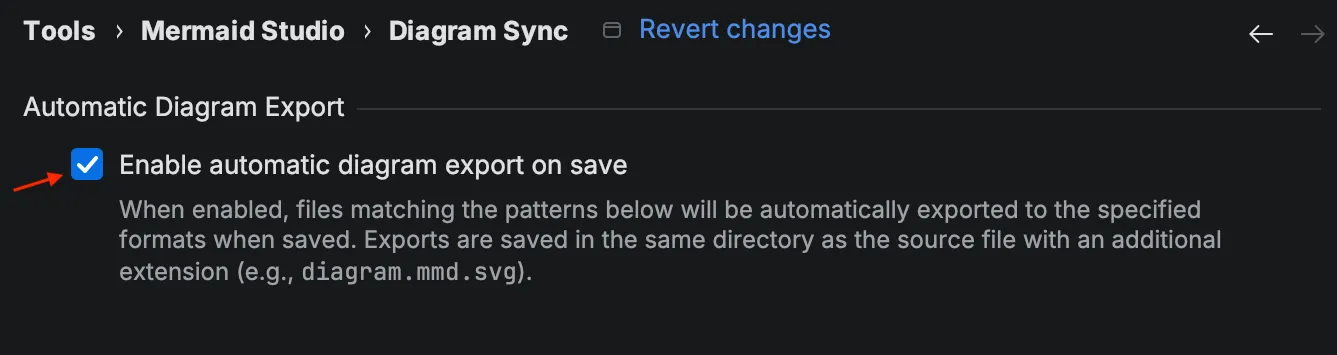

2. Check Export on save.

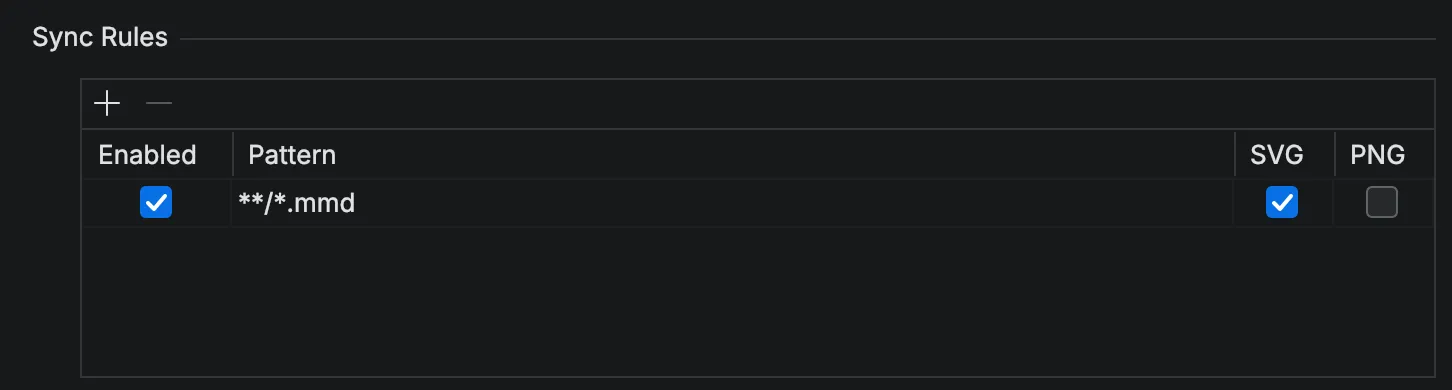

3. Click the + button to add a sync rule.

4. Enter a pattern to match your diagram files and select output formats (SVG, PNG, or both).



5. Click Apply.

Sync Rules

Each rule specifies which files to export and in what format:

Column	Description
Enabled	Toggle this rule on/off
Pattern	Glob pattern matching file paths
SVG	Export to SVG format
PNG	Export to PNG format

Pattern Examples

Pattern	What It Matches
**/*.mmd	All .mmd files anywhere in the project
**/*.mermaid	All .mermaid files anywhere in the project
docs/**/*.mmd	.mmd files in the docs folder and subfolders
diagrams/*.mmd	.mmd files directly in the diagrams folder

You can create multiple rules to handle different directories differently. If a file matches multiple rules that specify different output formats, artifacts from all matched rule formats are generated without generating any duplicate artifacts.

Absolute paths are treated as relative to the project root. Diagram Sync cannot be enabled for arbitrary files outside the project.

Status Bar Widget

When you have a Mermaid file open, a sync status icon appears in the bottom-right status bar.

The following badge colors indicate the current sync status:

Badge	Status	Meaning
Green	Synced	Exports are up-to-date
Yellow	Out of Sync	Source changed since last export
Red	Error	Export failed
None	No rules match this file

When a file is syncing, an animated spinner is shown in place of the sync icon.

Hover over the icon to see the current status, file name, and last synced timestamp.

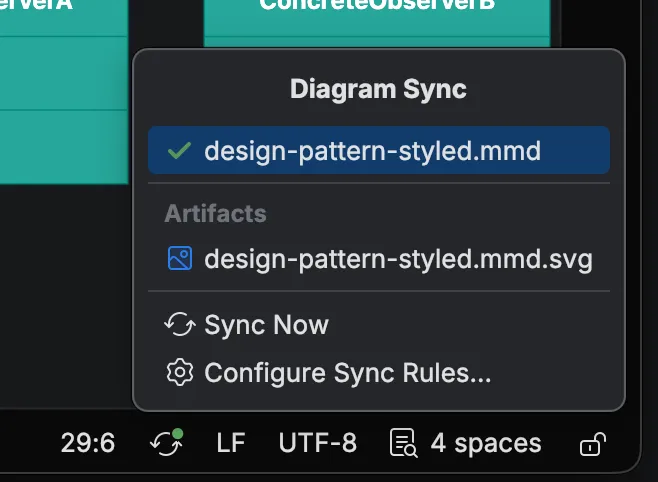

Click the icon to open a popup with status details, links to generated files, and a Sync Now button.

Manual Sync

To force an immediate export:

1. Click the status bar widget.

2. Click Sync Now.

This triggers an export outside the normal save-based workflow.

Artifact Locations

Artifacts are saved in the same directory as your source file with an appended extension:

Source File	SVG Artifact	PNG Artifact
flow.mmd	flow.mmd.svg	flow.mmd.png
docs/arch.mermaid	docs/arch.mermaid.svg	docs/arch.mermaid.png

Error Handling

If a diagram has syntax errors, Diagram Sync:

• Displays a red error icon in the status bar widget
• Logs the error details to the IDE log
• Preserves your existing artifacts (doesn’t delete or corrupt them)

Fix the syntax error and save again to retry the export.

Settings Persistence

Settings are stored per-project in .idea/mermaidstudio/sync.xml. You can share settings with your team by committing this file to version control.
