Requirement Diagram
Last updated:
Mermaid Studio provides language support for SysML-style requirement diagrams inside IntelliJ IDEA and other JetBrains IDEs. Requirement diagrams document and visualize system requirements, their relationships, and how they are satisfied by design elements, which is valuable for requirements traceability in engineering projects.

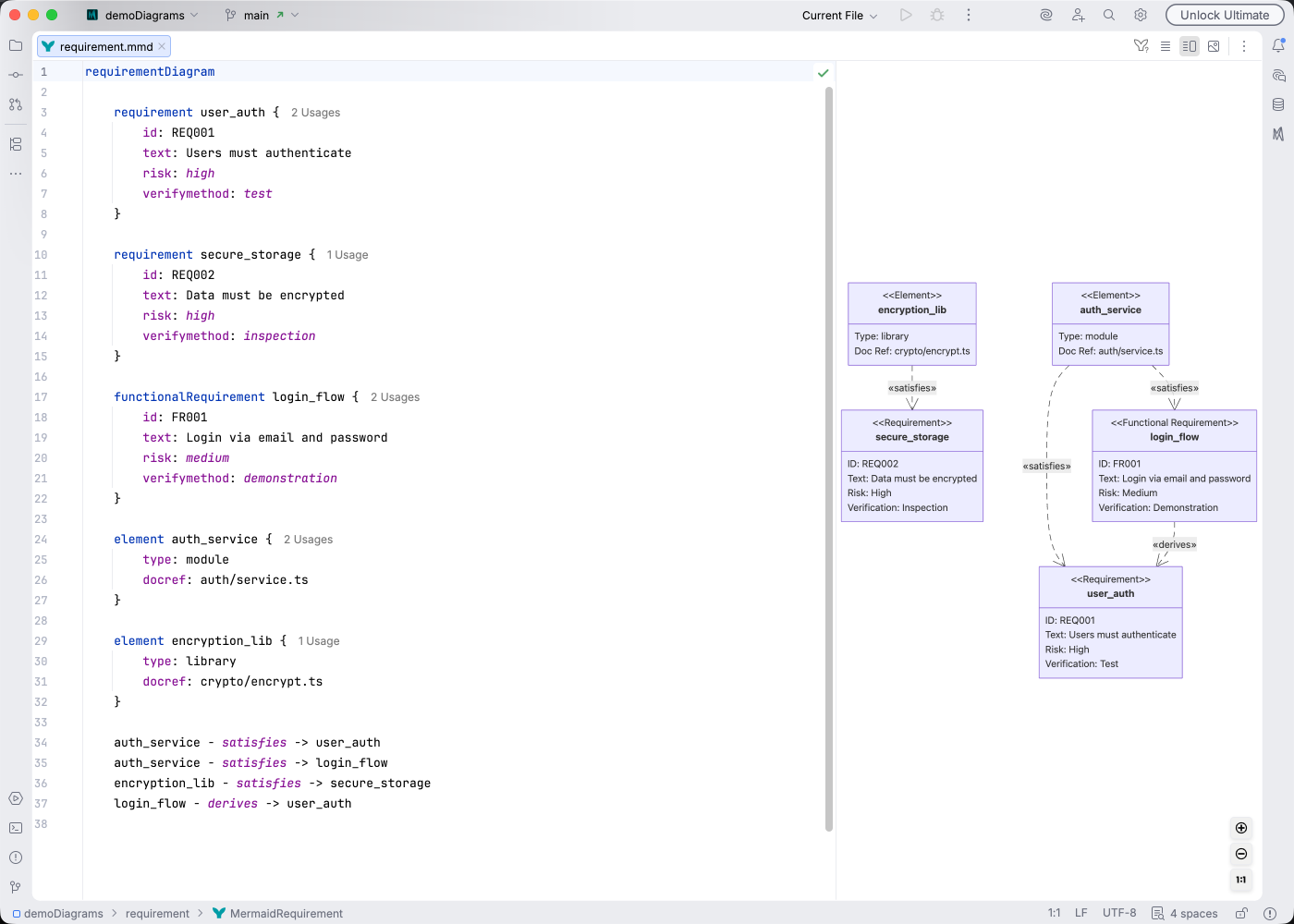

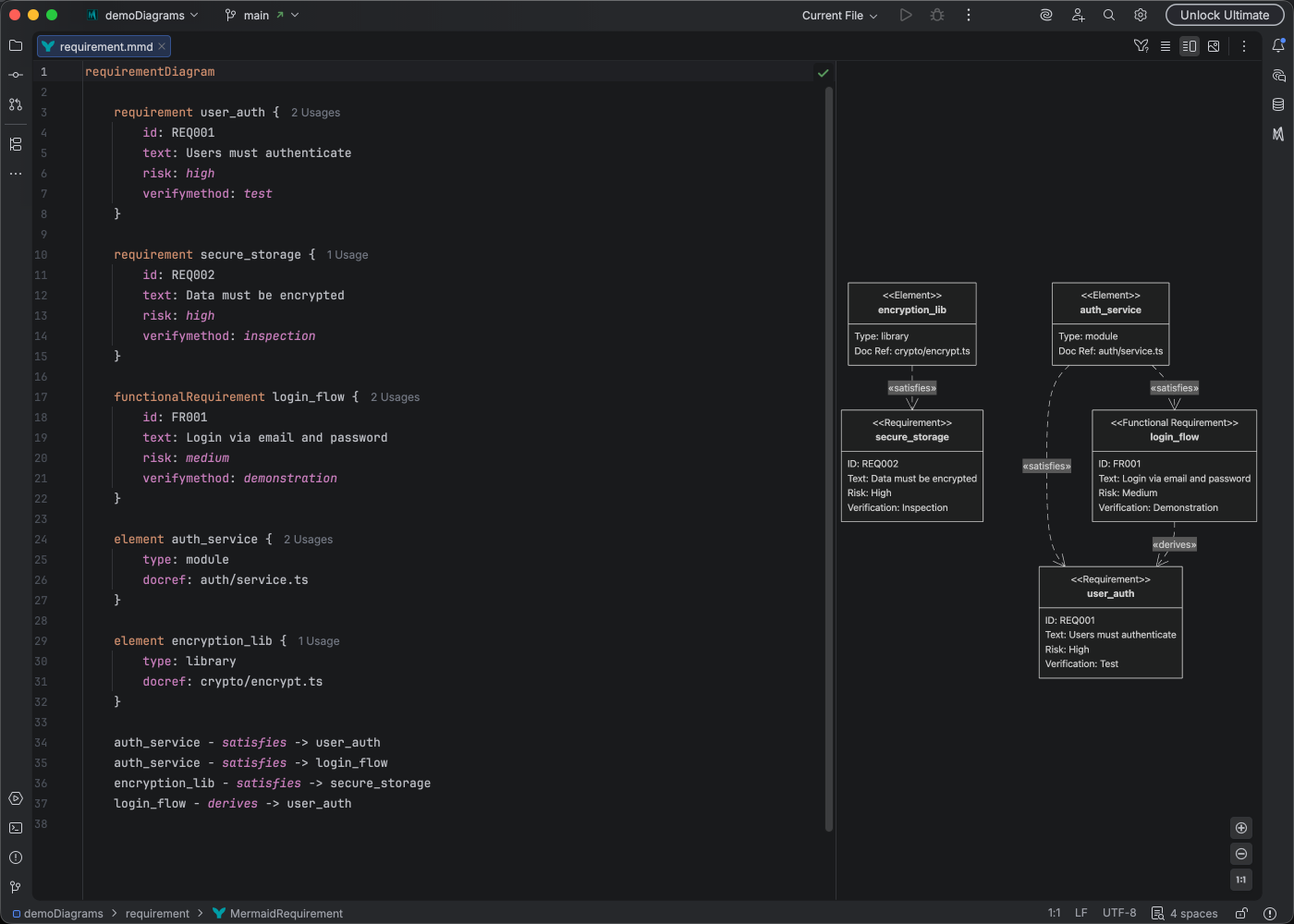

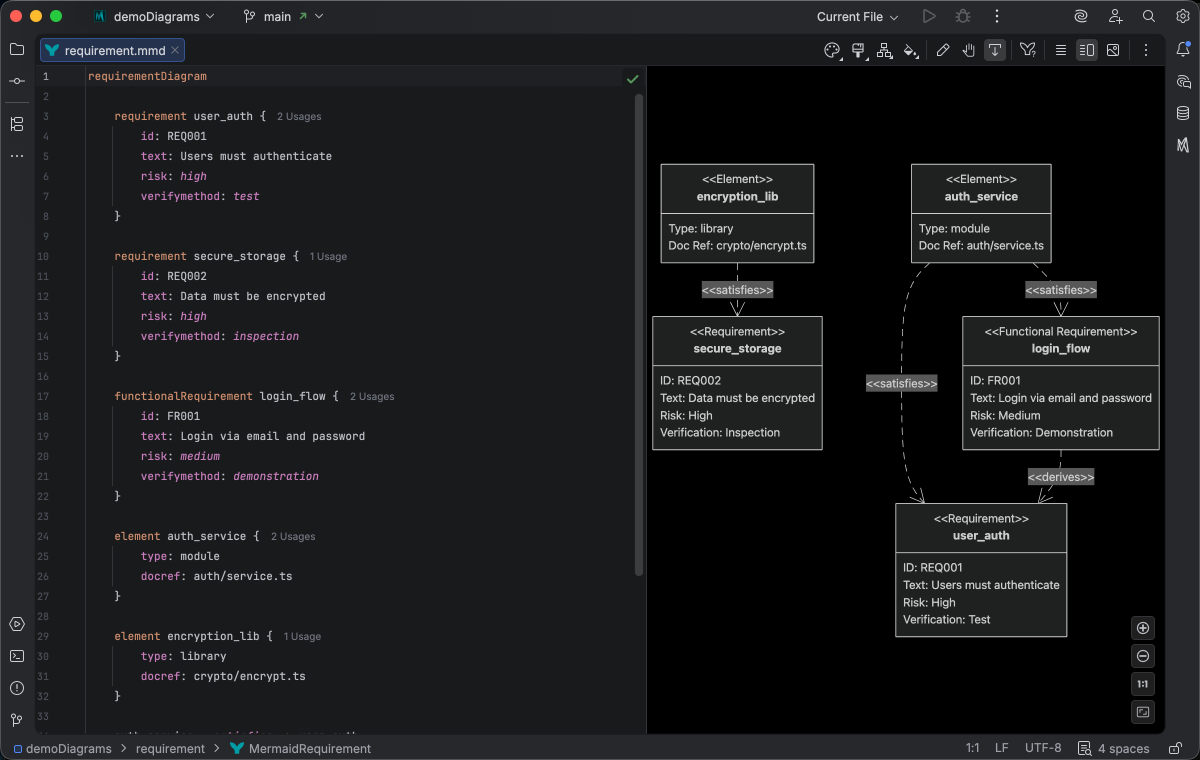

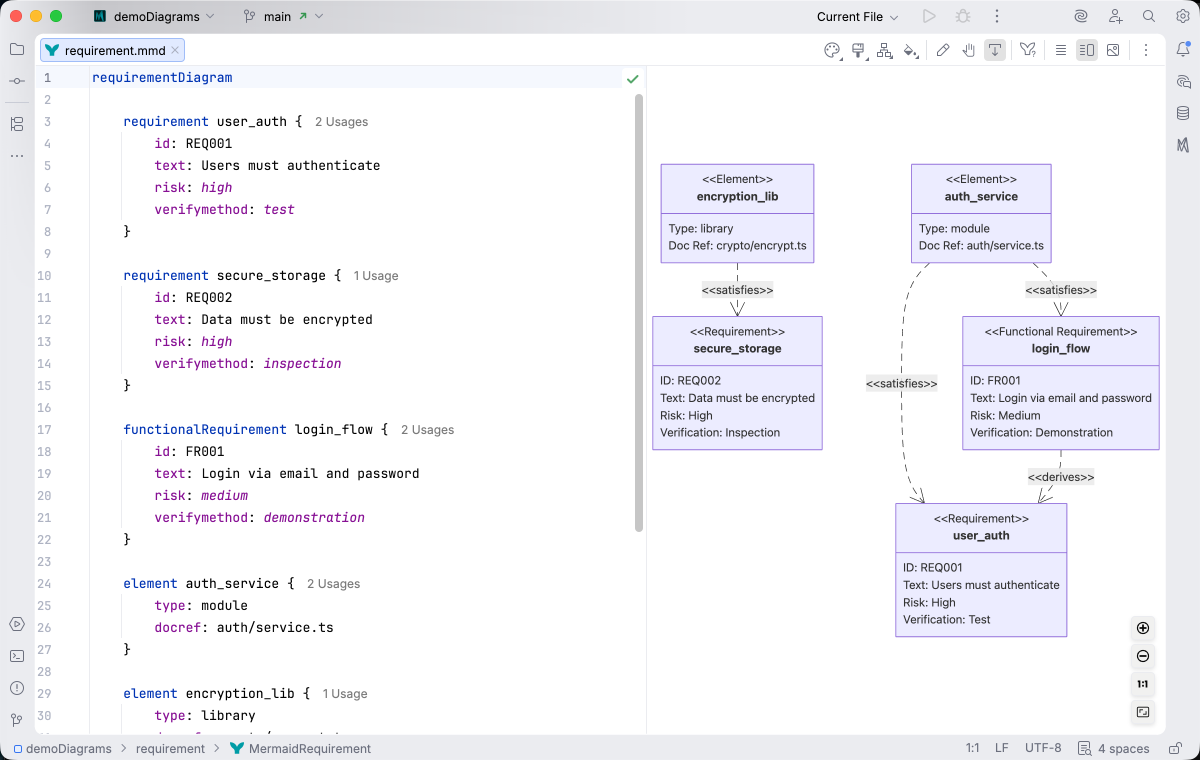

Syntax Highlighting
Section titled “Syntax Highlighting”Syntax highlighting integrates directly with IntelliJ’s color scheme system, so diagram colors always match your editor theme.
IDE Support
Section titled “IDE Support”The summary below shows the IDE support Mermaid Studio ships for requirement diagrams, grouped by capability.
Folding lets you collapse and expand structural blocks of the diagram source (subgraphs, frontmatter, multi-line strings) directly in the editor gutter. It keeps long diagrams navigable without forcing you to scroll past detail you don’t need right now.
Use the gutter triangles, Code → Folding, or the standard JetBrains shortcuts (
When the cursor sits next to a bracket, brace, or paren, Mermaid Studio highlights its matching pair across the whole diagram and lets you jump between them. This is especially valuable in nested syntax (subgraph blocks, JSON-style style strings, multi-shape labels) where it’s easy to lose track of which closer goes with which opener.
The line-comment action (
When you type a quote character to start a string, Mermaid Studio inserts the matching closing quote and places the cursor between them. Backspacing through an empty pair removes both characters at once. This keeps quoted labels balanced and reduces fiddly cursor work.
The formatter rewrites your diagram source to a canonical layout (consistent indentation, alignment of multi-line links, normalized whitespace around operators) without changing semantics.
It also clears up the whitespace mistakes that Mermaid’s parser is picky about, normalizing spacing between tokens so the parser accepts the diagram on the first read instead of throwing a confusing syntax error.
Run it with Code → Reformat Code (
Pressing
Live templates expand a short abbreviation into a larger snippet, with tab stops for the parts you fill in.
Type the abbreviation, press
A dedicated Grammar-Kit parser backs the highlighting, so tokens are colored by what they mean in the diagram (a type reference versus a label versus a style), not just what they look like. The same parser validates the syntax as you type, flagging malformed statements in place instead of letting one mistake cascade through the file.
This is the foundation richer features build on; the same grammar drives completions, refactoring, and inspections.
Per-diagram annotators apply rule-based highlighting above the lexer and parser, running on every keystroke and painting their results directly in the editor. Mermaid Studio uses them across the full range the platform supports: highlighting that token types alone cannot decide (coloring a reference by what it resolves to), semantic errors and warnings (an edge pointing at an undefined node, an invalid direction value), and inline cues such as marking duplicate labels. Unlike inspections (configurable checks listed in Settings), annotators are always on, whether a rule ends in a color or a warning.
As you type, Mermaid Studio offers context-aware suggestions filtered to what’s valid at the cursor: node shapes, arrow types, keywords, icon names, identifiers, frontmatter keys, theme variables, and more. Completions cut down on typos and make the diagram syntax self-documenting.
Completion and validation for the YAML frontmatter block above the diagram body, driven by the diagram type’s slice of the Mermaid config schema. Config keys, enum values, and color properties complete as you type, and unknown or mistyped keys are flagged in place.
Hex, named, and rgb()/hsl() colors in style declarations get a small color swatch rendered in the gutter.
Click the swatch to open the IntelliJ color picker and pick a new value, and the source updates in place.
Inspections are static analyzers that run continuously and surface problems as you edit: duplicate IDs, undefined references, malformed syntax, deprecated patterns, missing required fields. Each inspection has a configurable severity (error, warning, info), can be suppressed inline, and most ship with a quick fix that resolves the issue with one keystroke.
This is where most of the editorial intelligence lives: a diagram type with rich inspections is much harder to break in subtle ways.
Rename refactoring (
Find Usages (
Code Vision renders small inline indicators above declarations, typically reference counts (“5 references”, “3 inbound edges”), so you can see at a glance how connected an element is without running Find Usages. Click an indicator to jump to the references list.
The Structure tool window (
Live templates
Section titled “Live templates”A set of 15 context-aware live templates scaffolds the six requirement variants, element blocks, and the seven relationship verbs. Type a short abbreviation, accept it from the completion popup, and tab through the template variables.
Individual abbreviations can be toggled under Settings > Tools > Mermaid Studio > Live Templates in the Requirement Diagram group. See Live Templates for the cross-cutting mechanics (triggering, contextual visibility, configuration).
Requirement declarations
Section titled “Requirement declarations”The six requirement-variant templates share the same body shape (id, text, risk, verifymethod).
risk and verifymethod are populated from enum() pickers, so Tab walks you through valid values.
| Abbreviation | Expansion |
|---|---|
req | Generic requirement declaration |
reqf | functionalRequirement |
reqi | interfaceRequirement |
reqperf | performanceRequirement |
reqphy | physicalRequirement |
reqdc | designConstraint |
Elements
Section titled “Elements”| Abbreviation | Expansion |
|---|---|
elem | element declaration with type and docRef |
Relationships
Section titled “Relationships”The generic rel template uses a verb picker so you can choose any of the seven relationship verbs on insert.
The seven hard-coded templates pre-pick the verb for you.
| Abbreviation | Expansion |
|---|---|
rel | Relationship with verb picker |
rels | satisfies relationship |
relt | traces relationship |
relc | contains relationship |
reld | derives relationship |
relr | refines relationship |
relcp | copies relationship |
relv | verifies relationship |
Quick Syntax Reference
Section titled “Quick Syntax Reference”Requirement types:
requirement- Functional requirementfunctionalRequirement- Functional requirement (explicit)performanceRequirement- Performance constraintinterfaceRequirement- Interface specificationphysicalRequirement- Physical constraintdesignConstraint- Design limitation
Requirement properties:
requirementDiagram requirement Example { id: REQ-002 text: Description of the requirement risk: low verifymethod: analysis }Risk levels: low, medium, high
Verification methods: analysis, inspection, test, demonstration
Relationship types:
- satisfies ->- Element satisfies requirement- traces ->- Requirement traces to another- contains ->- Requirement contains sub-requirements- derives ->- Requirement derives from another- refines ->- Requirement refines another- copies ->- Requirement copies another- verifies ->- Element verifies requirement
For the complete syntax reference, see the Mermaid.js Requirement Diagram documentation.
