YAML Frontmatter

Mermaid diagrams support YAML frontmatter for per-diagram configuration. Mermaid Studio transforms this configuration block into a first-class editing experience with validation, intelligent completions, and visual color editing.

Frontmatter Syntax

Frontmatter is a YAML block at the start of your diagram, enclosed between --- delimiters:

---
title: User Authentication Flow
config:
  theme: dark
  look: handDrawn
---
flowchart TD
    A[Login Page] --> B{Valid credentials?}
    B -->|Yes| C[Dashboard]
    B -->|No| D[Error Message]

Intelligent Code Completion

Press Control + Space ControlSpace Control + Space CtrlSpace anywhere in the frontmatter to see context-aware completions.

Diagram-Aware Suggestions

Completions adapt to the diagram type you’re editing. In a flowchart, you see curve, padding, and nodeSpacing. In a sequence diagram, you see mirrorActors, showSequenceNumbers, and actorMargin. This keeps suggestions relevant and reduces noise.

Enum Value Completion

Properties with predefined values show all valid options:

• theme: default, dark, forest, neutral, base
• look: classic, handDrawn
• curve types: basis, linear, cardinal, etc.

No more guessing or checking documentation for valid values.

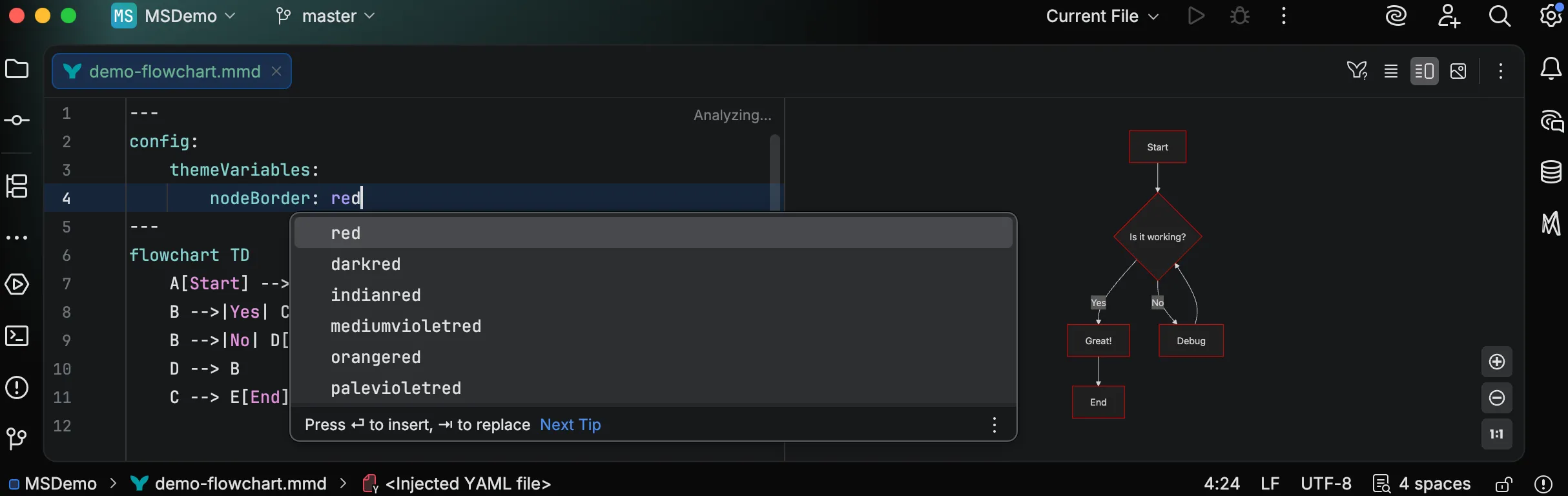

CSS Color Names

Color properties complete all 147 standard CSS color names. Type a few characters to filter, then select from the list.

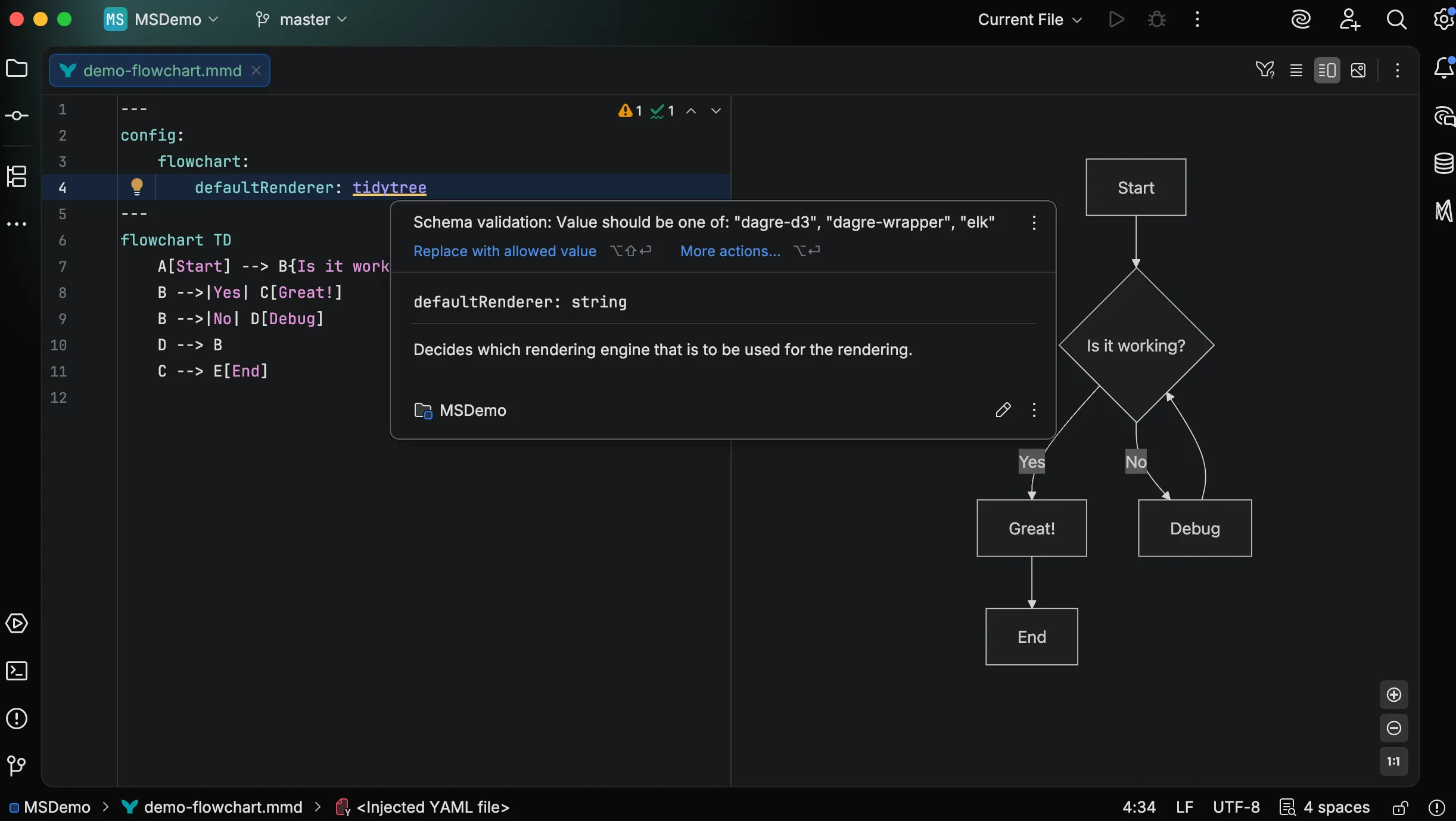

Real-Time Validation

Mermaid Studio validates frontmatter against a comprehensive JSON schema derived from Mermaid.js source code. Errors appear immediately as you type.

The plugin catches:

• Type mismatches — strings where numbers are expected
• Invalid enumerated values — misspelled theme names or curve types
• Structural errors — YAML syntax problems

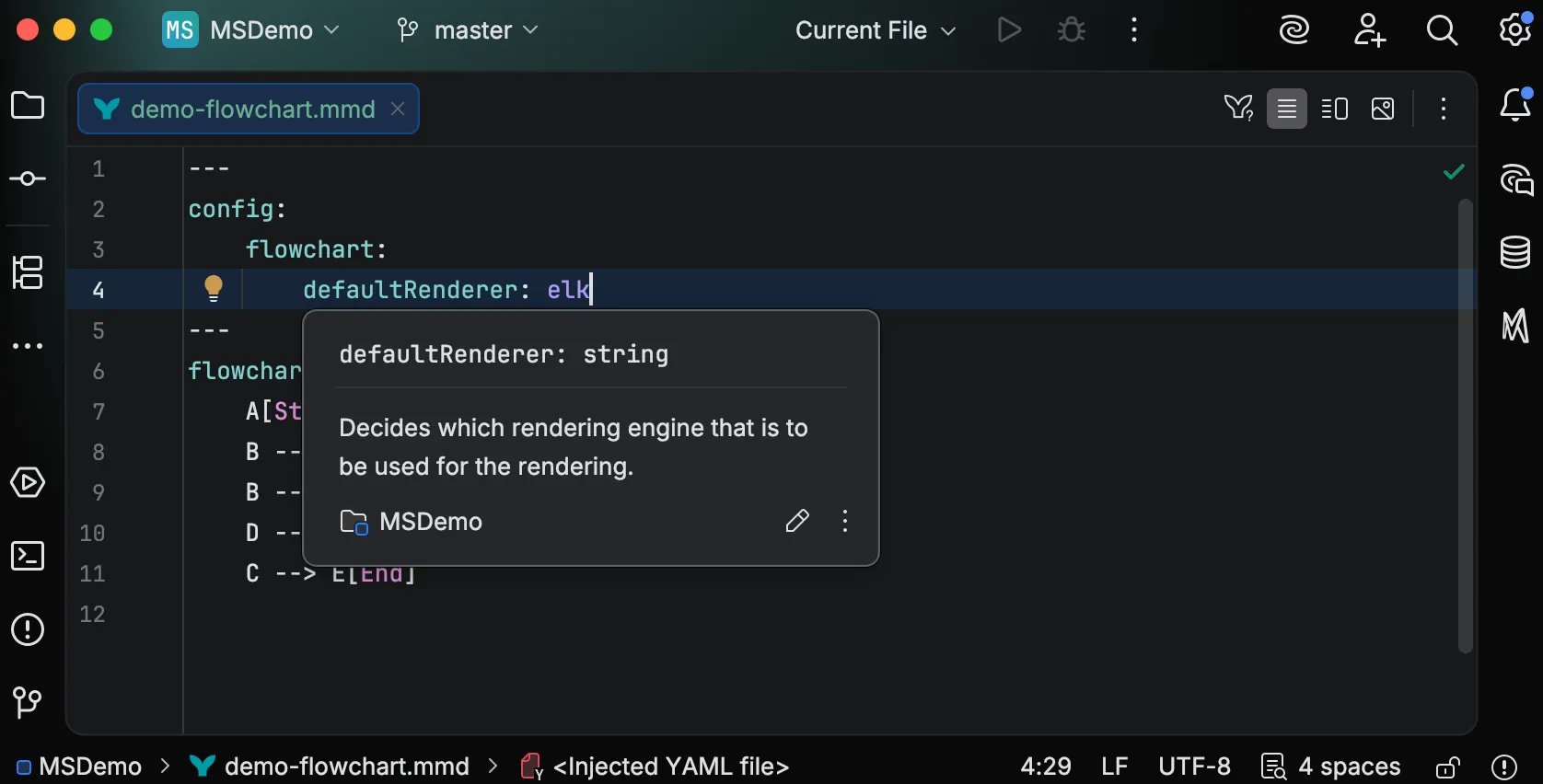

Documentation on Hover

Hover over any property to see its description and expected type. This provides quick reference without leaving your editor or switching to browser documentation.

Visual Color Editing

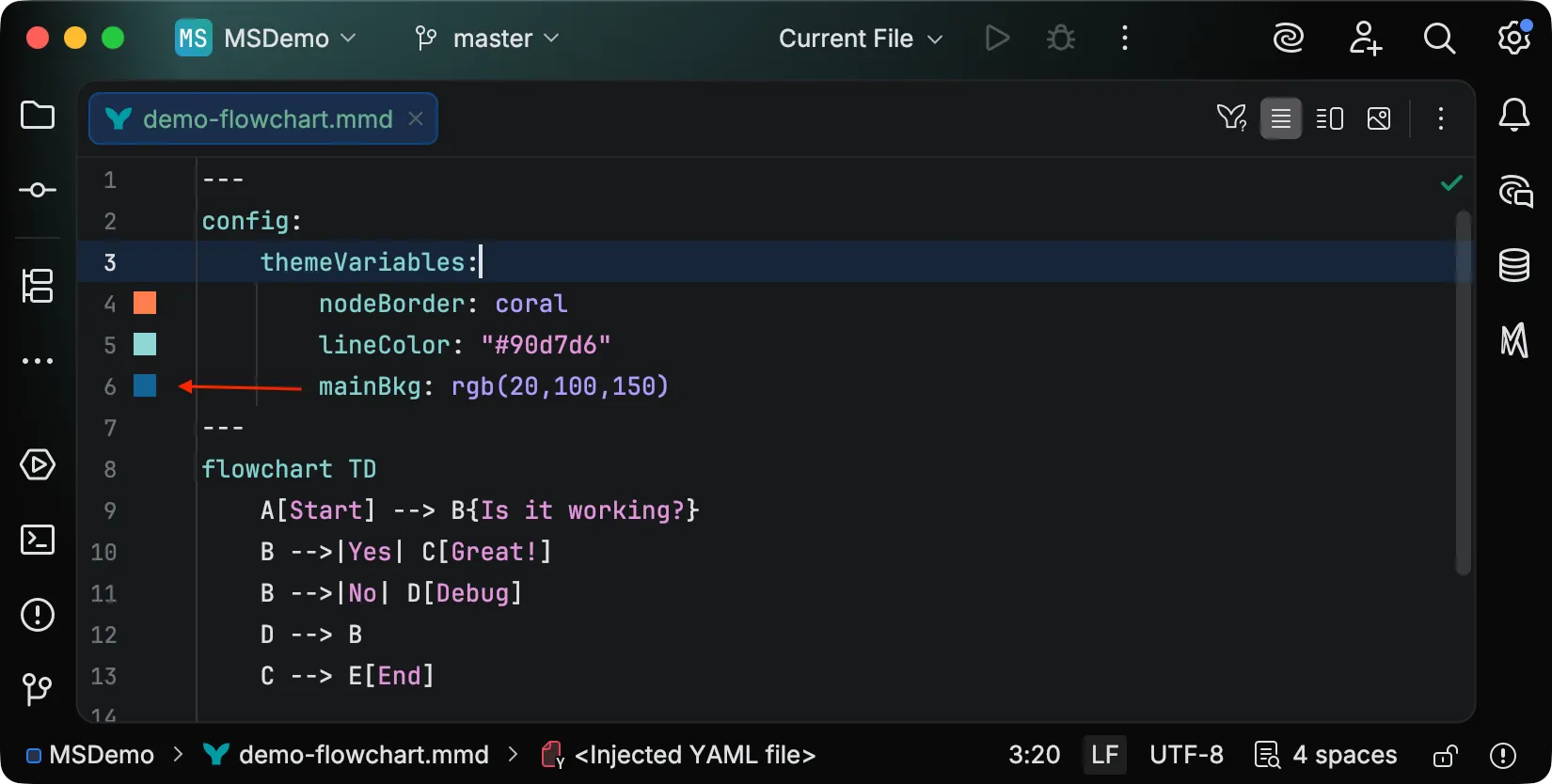

Color Gutter Icons

Color values display a preview swatch in the editor gutter. At a glance, you can see what colors your diagram will use.

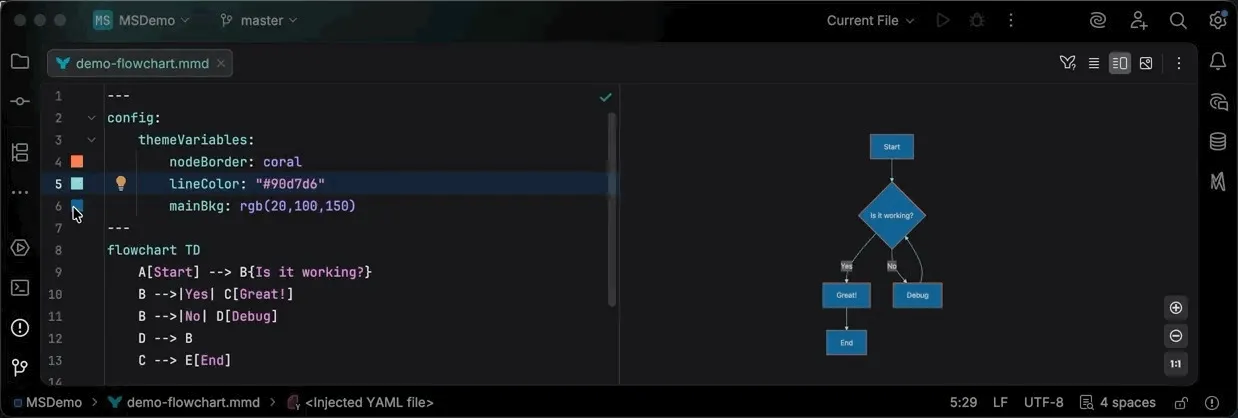

Integrated Color Picker

Click any color swatch to open a color picker. Select a new color visually, and the value updates automatically in your code. This works for hex, RGB, HSL, and named colors.

Supported Color Formats

All standard CSS color formats work:

themeVariables:
  primaryColor: "#4a9eff"             # Hex
  secondaryColor: steelblue           # Named color
  tertiaryColor: rgb(255, 85, 0)      # RGB
  lineColor: rgba(255, 85, 0, 0.8)    # RGBA
  textColor: hsl(210, 100%, 50%)      # HSL
  background: hsla(210, 50%, 90%, 0.5) # HSLA

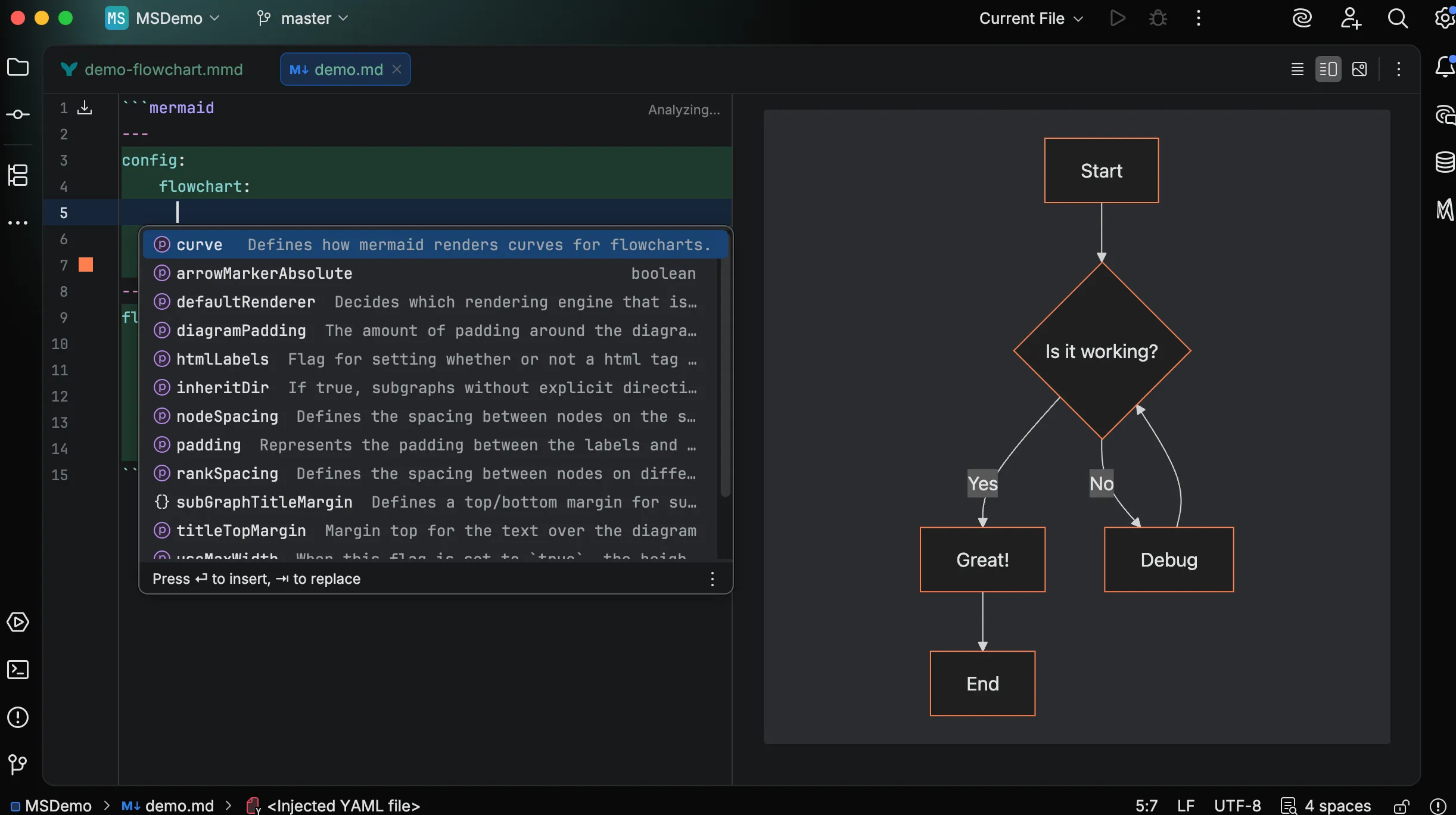

Markdown Integration

Frontmatter support works identically in Mermaid code blocks within Markdown files. You get the same validation, completion, and color features whether editing a .mmd file or a fenced code block.

```mermaid
---
title: Embedded Diagram
config:
  theme: dark
---
flowchart LR
    A --> B
```

Configuration Reference

For the complete list of frontmatter properties, theme variables, and diagram-specific options, see the Mermaid.js configuration documentation. Additionally, you can read the theming reference for a simpler primer on configuring themeVariables.
