Theme CSS

Last updated:

Mermaid supports a config.themeCSS block in frontmatter for applying custom CSS to a diagram’s rendered SVG. Mermaid Studio recognizes and parses the contents as CSS, with highlighting, validation, and class-name completion driven by the classes your diagram actually uses.

When to use Theme CSS

Section titled “When to use Theme CSS”

classDef handles the common cases (fills, strokes, colors). Reach for themeCSS when you need CSS features Mermaid’s inline syntax doesn’t support:

  • Keyframe animations (@keyframes) for pulsing nodes, moving markers, or progressive stroke drawing
  • Pseudo-classes and pseudo-elements (:hover, ::before) for interactive or decorative styling
  • Descendant selectors (.node rect, .edgePath path) that reach into the SVG Mermaid generates
  • CSS variables and anything else valid CSS can express

The block is plain CSS applied to the rendered SVG, so anything the browser’s style engine accepts works at render time.

Mermaid flowcharts don’t natively support pulse animations on links; with themeCSS you can add one in a few lines:

---
config:
  themeCSS: |-
    @keyframes pulse {
      0%, 100% { stroke-opacity: 1; }
      50% { stroke-opacity: 0.25; }
    }


    .flowchart-link {
      stroke: #14b8a6 !important;
      stroke-width: 2px !important;
      animation: pulse 1.4s ease-in-out infinite;
    }
---
flowchart LR
  A[(Events)] --> B[Ingest]
  B --> C[Enrich]
  B --> D[Validate]
  C --> E[(Store)]
  D --> E
  E --> F[Serve]

Writing Theme CSS

Section titled “Writing Theme CSS”

Add a config.themeCSS key to your diagram’s frontmatter and use a YAML block scalar (|) so newlines are preserved. The example below uses classDef for per-class fills and themeCSS for a drop-shadow on the node rectangles. Flowchart classDef is comma-separated, so any value that contains a comma (like rgba(0, 0, 0, 0.35) inside drop-shadow(...)) breaks the parse. themeCSS accepts arbitrary CSS, commas and all.

---
config:
  themeCSS: |-
    .node rect {
      filter: drop-shadow(0 3px 6px rgba(148, 163, 184, 0.7));
    }
---
flowchart TD
  A[Request]:::user --> B{Valid?}
  B -->|No| C[Reject]:::danger
  B -->|Yes| D[Process]


  classDef user fill:#fef3c7,stroke:#b45309,color:#000
  classDef danger fill:#fecaca,stroke:#b91c1c,color:#000

When the diagram renders, Mermaid applies the CSS to the resulting SVG. Your themeCSS takes precedence over classDef declarations, so use it to override defaults or add styling hooks that Mermaid’s built-in options can’t express.

Syntax Highlighting

Section titled “Syntax Highlighting”

CSS tokens inside the block are highlighted the same way as a standalone .css file: selectors, properties, values, and units all pick up your IDE’s CSS color scheme. Color values get gutter swatches you can click to open the color picker.

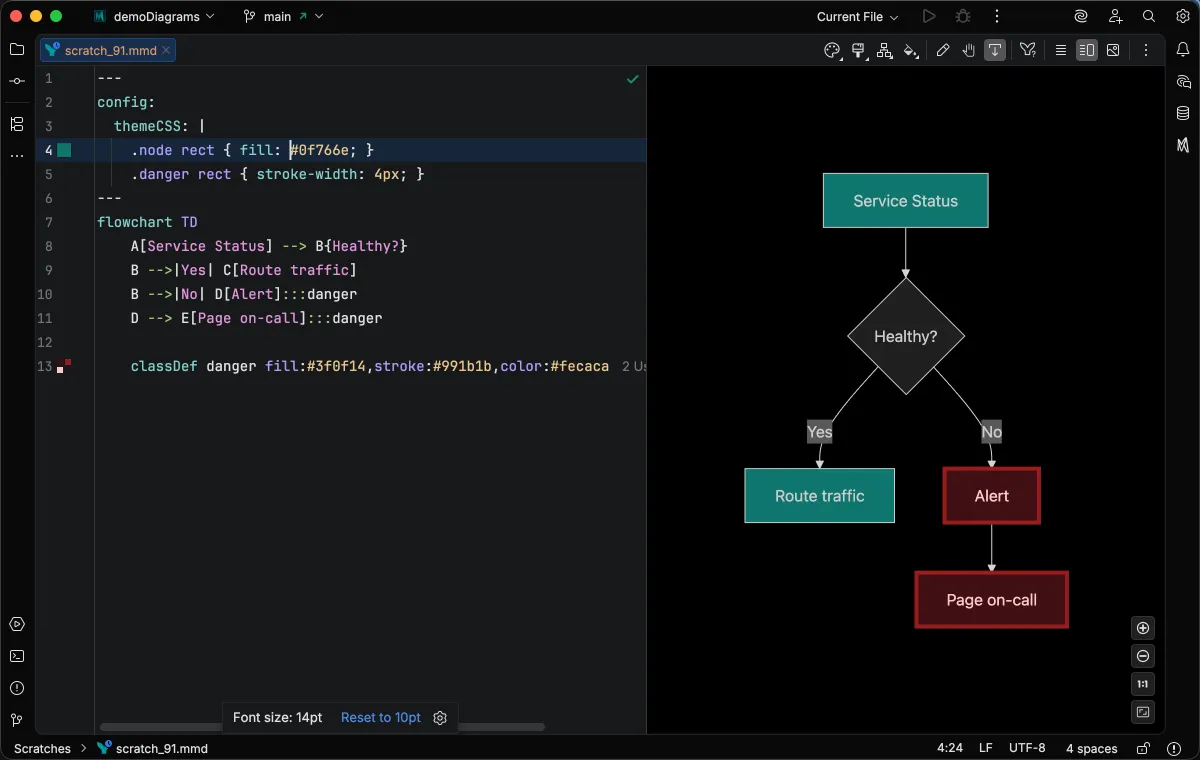

Theme CSS highlighting with colored selectors, properties, and a gutter color swatch

Class-Name Completion

Section titled “Class-Name Completion”

Trigger completion in a class selector position (after .) to see two kinds of suggestions:

  • Your classDef classes — names you’ve declared in the same diagram, boosted to the top of the list and tagged classDef
  • Rendered diagram classes — classes pulled from the rendered live preview (node types, flowchart markers, and so on), tagged Mermaid

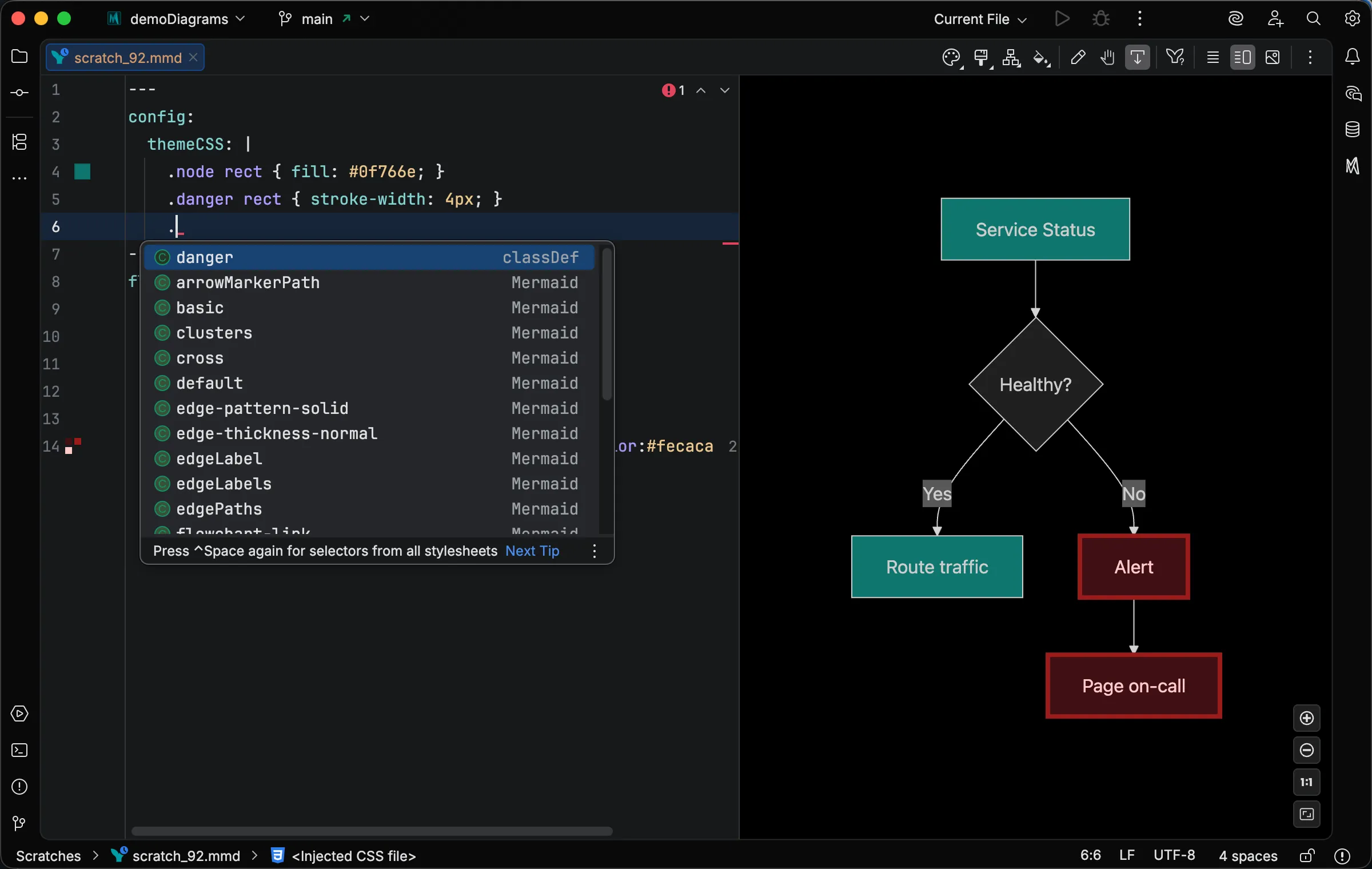

Completion popup showing classDef-declared classes boosted above framework classes from the live preview

Completions from the live preview require it to have rendered at least once so the class list is populated; if the diagram fails to render, only your classDef names will appear.

Scope and Limitations

Section titled “Scope and Limitations”
  • All diagram types — works anywhere Mermaid accepts a config.themeCSS frontmatter key, which covers every supported diagram type (flowchart, sequence, class, state, ER, and the rest).
  • Standalone files only — available in .mmd and .mermaid files; not in Mermaid code fences inside Markdown.
Section titled “Related”
  • YAML Frontmatter — other frontmatter keys you can set alongside themeCSS
  • Code Completion — other contexts where Mermaid Studio provides completions
  • Style Pane — apply styles visually rather than writing CSS
