Diagram Types

Mermaid Studio provides full language support for all native Mermaid.js diagram types. Each diagram type has syntax highlighting, validation, code completion, and live preview.

The only unsupported diagram type is ZenUML, which is a third-party integration rather than a native Mermaid type.

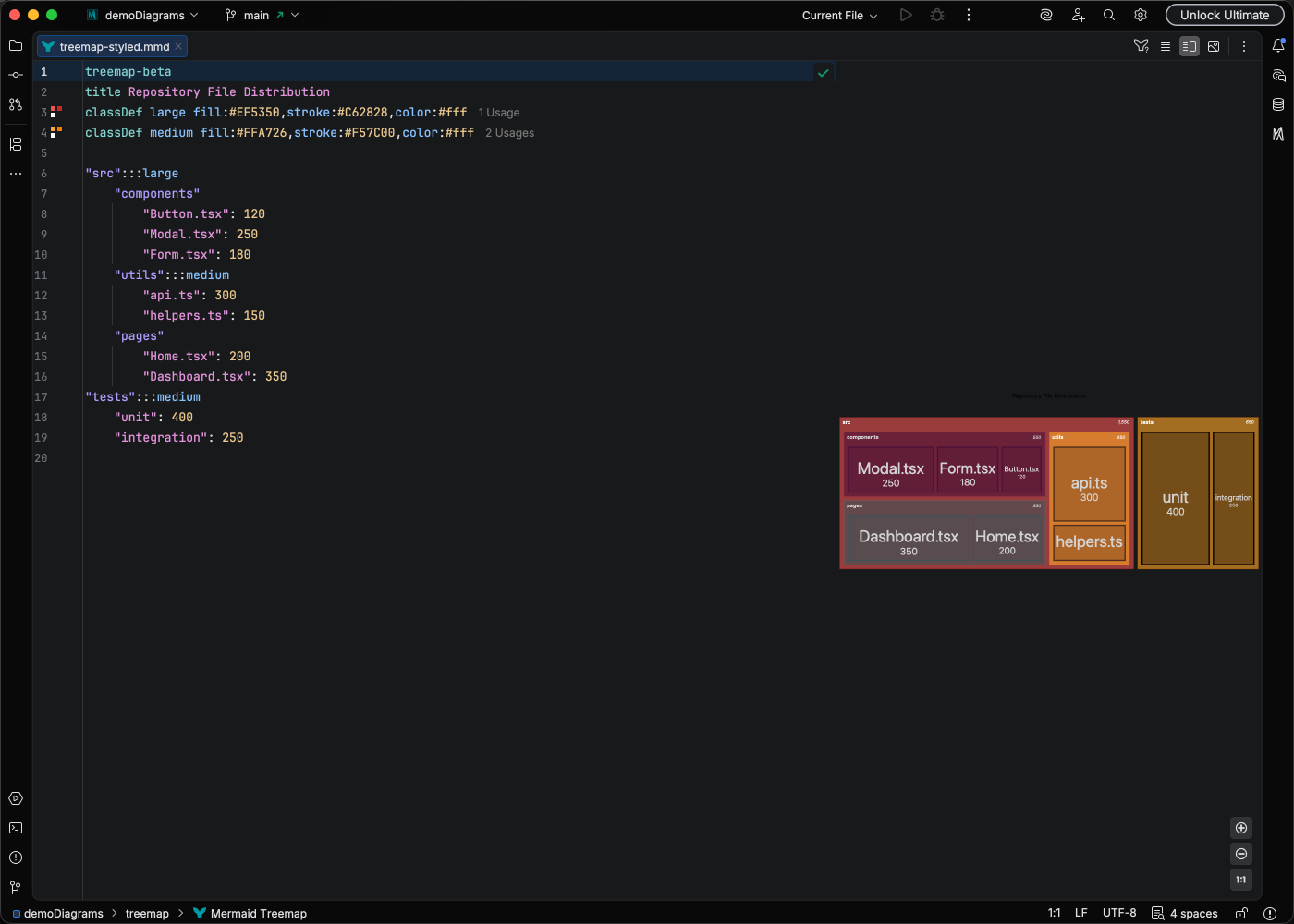

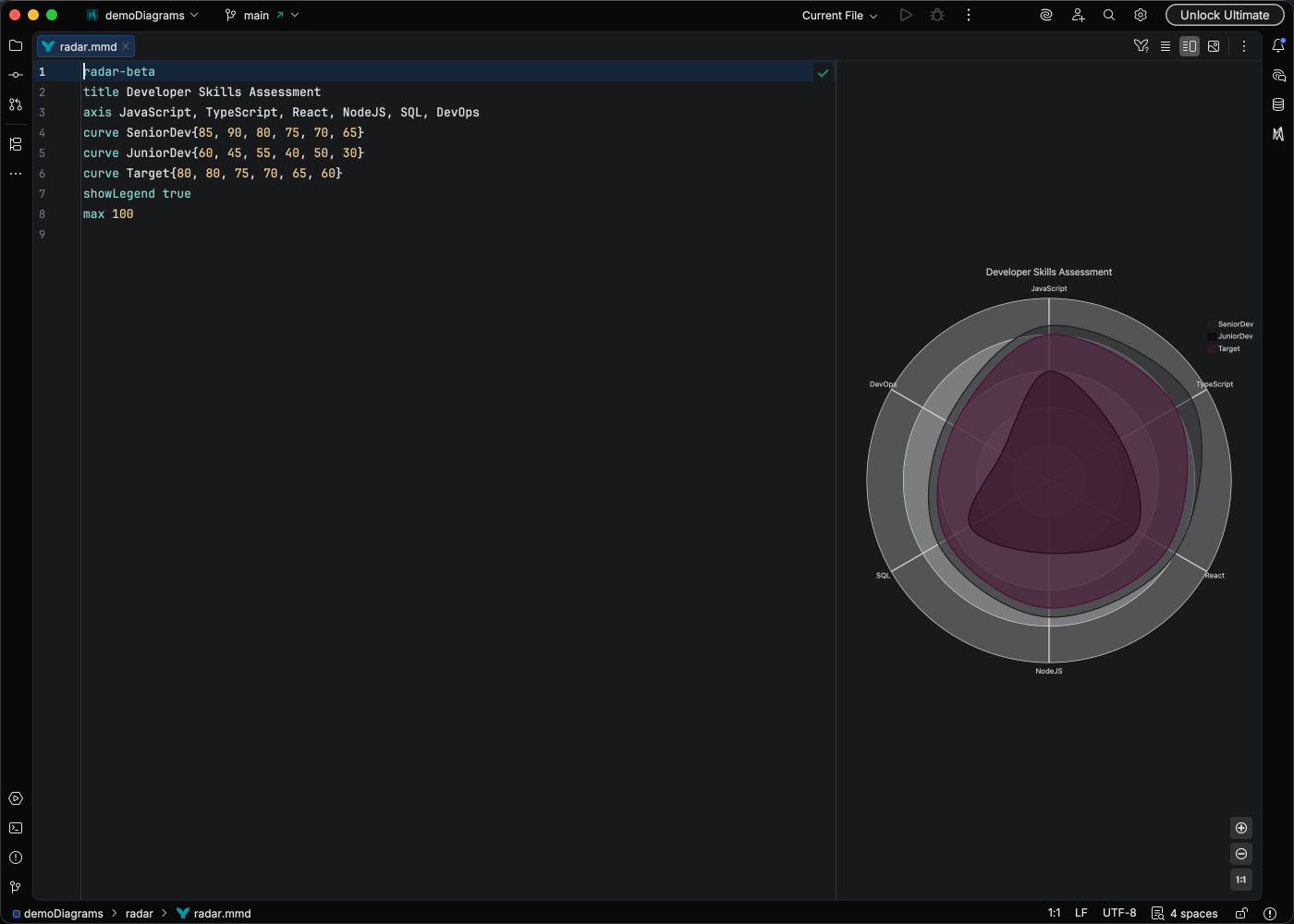

Supported Diagram Types

Flowchart

The classic diagram type for processes, workflows, and decision trees.

flowchart TD
    A[Start] --> B{Decision}
    B -->|Yes| C[Action 1]
    B -->|No| D[Action 2]
    C --> E[End]
    D --> E

Sequence Diagram

Model interactions between participants over time.

sequenceDiagram
    participant Client
    participant Server
    participant Database

    Client->>Server: Request
    Server->>Database: Query
    Database-->>Server: Results
    Server-->>Client: Response

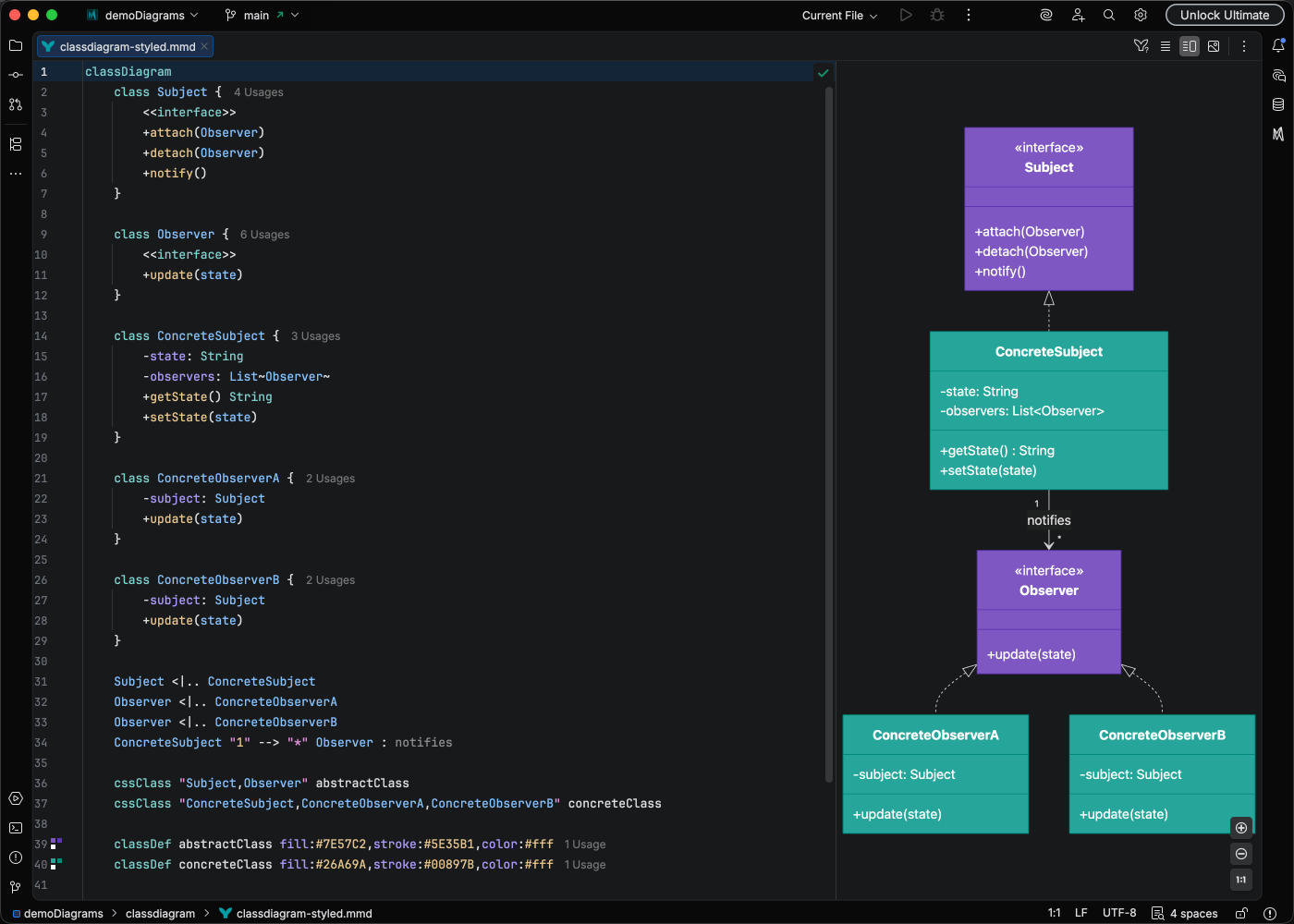

Class Diagram

Document object-oriented designs and relationships.

classDiagram
    class Animal {
        +String name
        +int age
        +makeSound()
    }
    class Dog {
        +bark()
    }
    Animal <|-- Dog

State Diagram

Model state machines and transitions.

stateDiagram-v2
    [*] --> Idle
    Idle --> Processing : Start
    Processing --> Complete : Finish
    Processing --> Error : Fail
    Complete --> [*]
    Error --> Idle : Reset

Entity Relationship Diagram

Define entity relationships for databases.

erDiagram
    CUSTOMER ||--o{ ORDER : places
    ORDER ||--|{ LINE_ITEM : contains
    PRODUCT ||--o{ LINE_ITEM : "is in"

Gantt Chart

Plan and track project schedules.

gantt
    title Project Timeline
    dateFormat YYYY-MM-DD
    section Phase 1
    Task 1: 2024-01-01, 30d
    Task 2: after Task 1, 20d
    section Phase 2
    Task 3: 2024-02-15, 25d

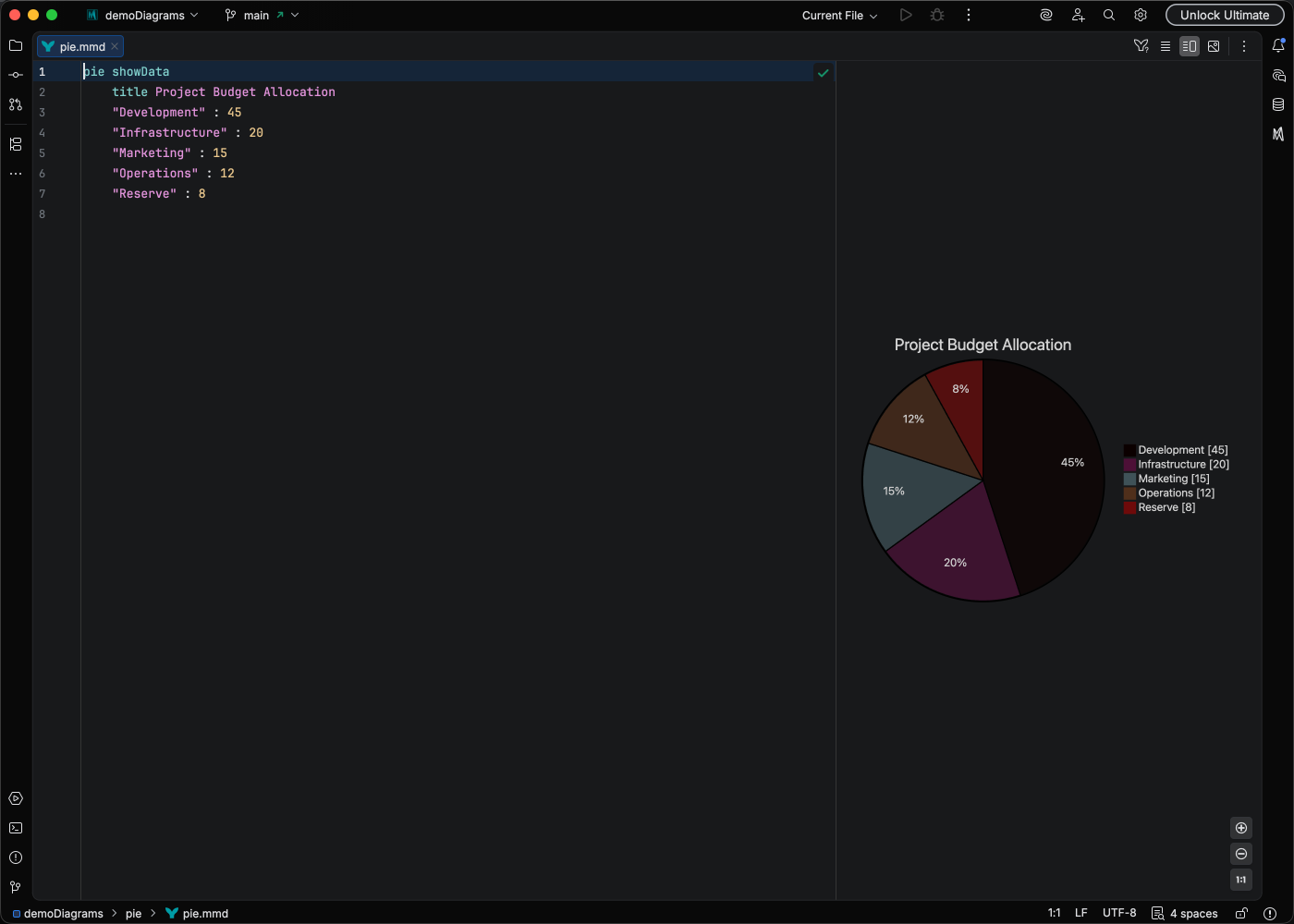

Pie Chart

Visualize proportional data.

pie title Technology Usage
    "JavaScript" : 40
    "Python" : 30
    "Java" : 20
    "Other" : 10

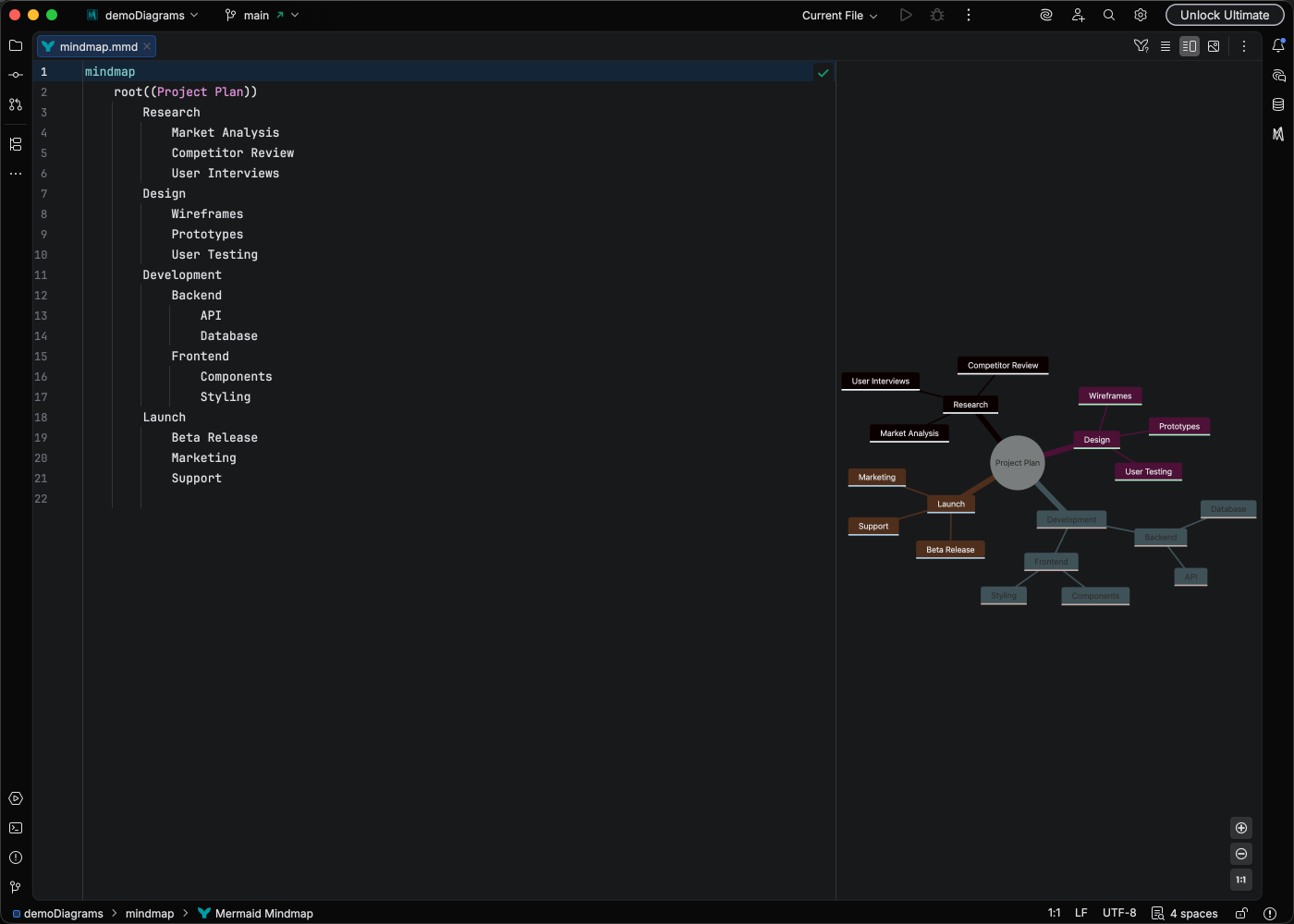

Mindmap

Organize ideas hierarchically.

mindmap
    root((Project))
        Research
            User Interviews
            Market Analysis
        Design
            Wireframes
            Prototypes
        Development
            Frontend
            Backend

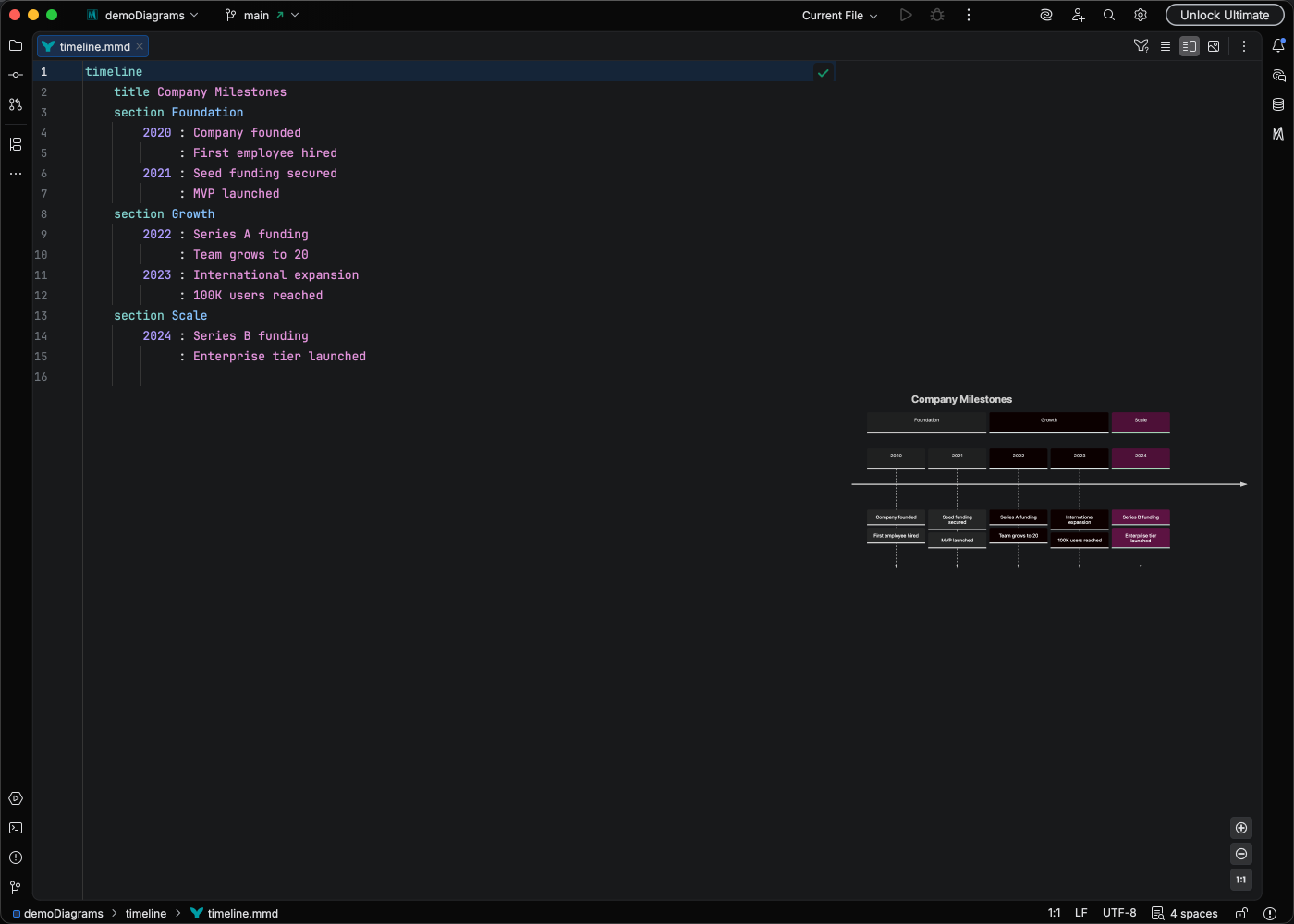

Timeline

Visualize chronological events.

timeline
    title Product Roadmap
    2024 Q1 : Planning : Research
    2024 Q2 : Development : Alpha Release
    2024 Q3 : Beta Testing
    2024 Q4 : Launch

Kanban

Represent task boards and workflows.

kanban
    column1[Todo]
        task1[Design mockups]
        task2[Write specs]
    column2[In Progress]
        task3[Implement API]
    column3[Done]
        task4[Setup project]

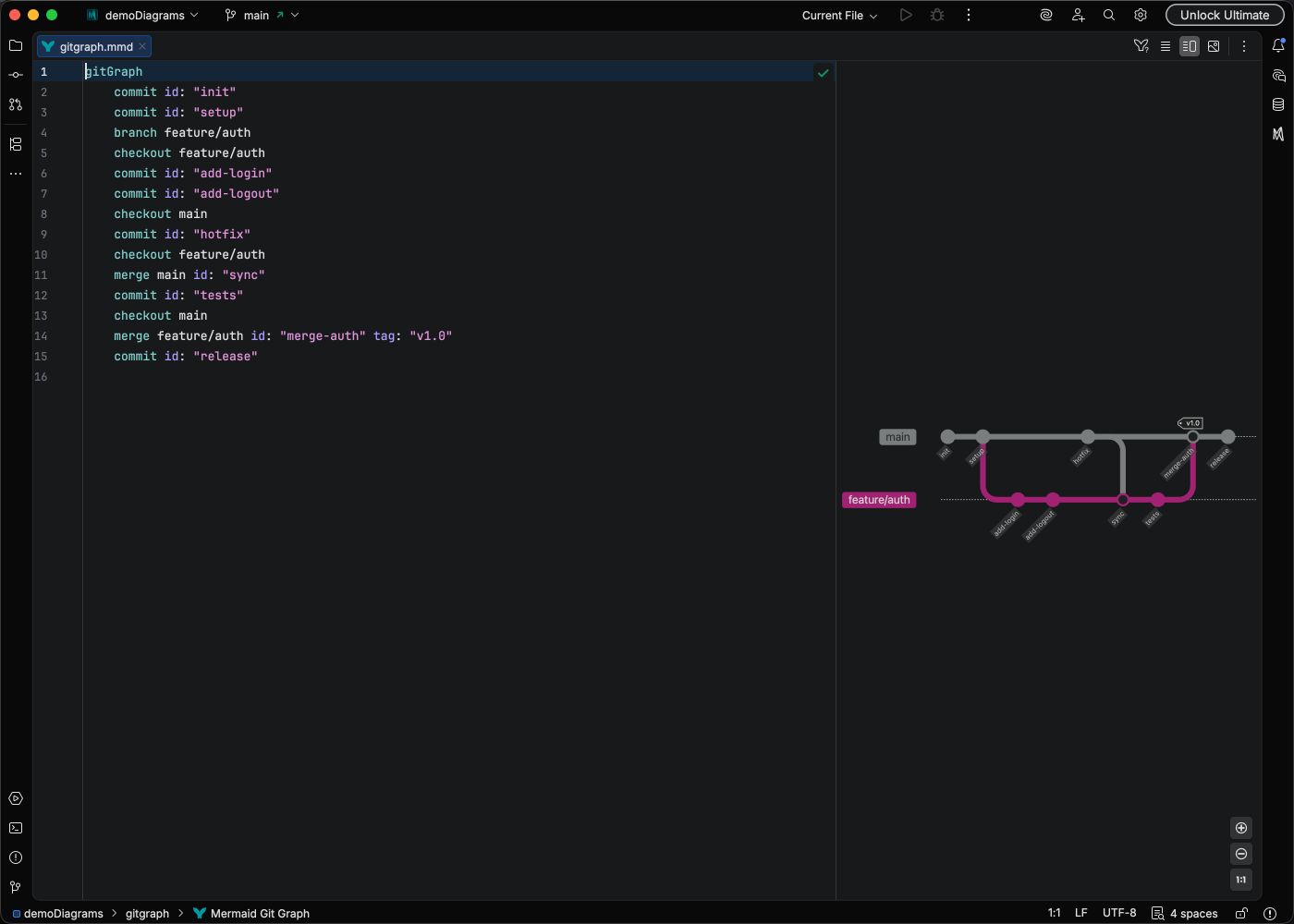

Git Graph

Visualize version control history.

gitGraph
    commit
    branch develop
    checkout develop
    commit
    commit
    checkout main
    merge develop
    commit

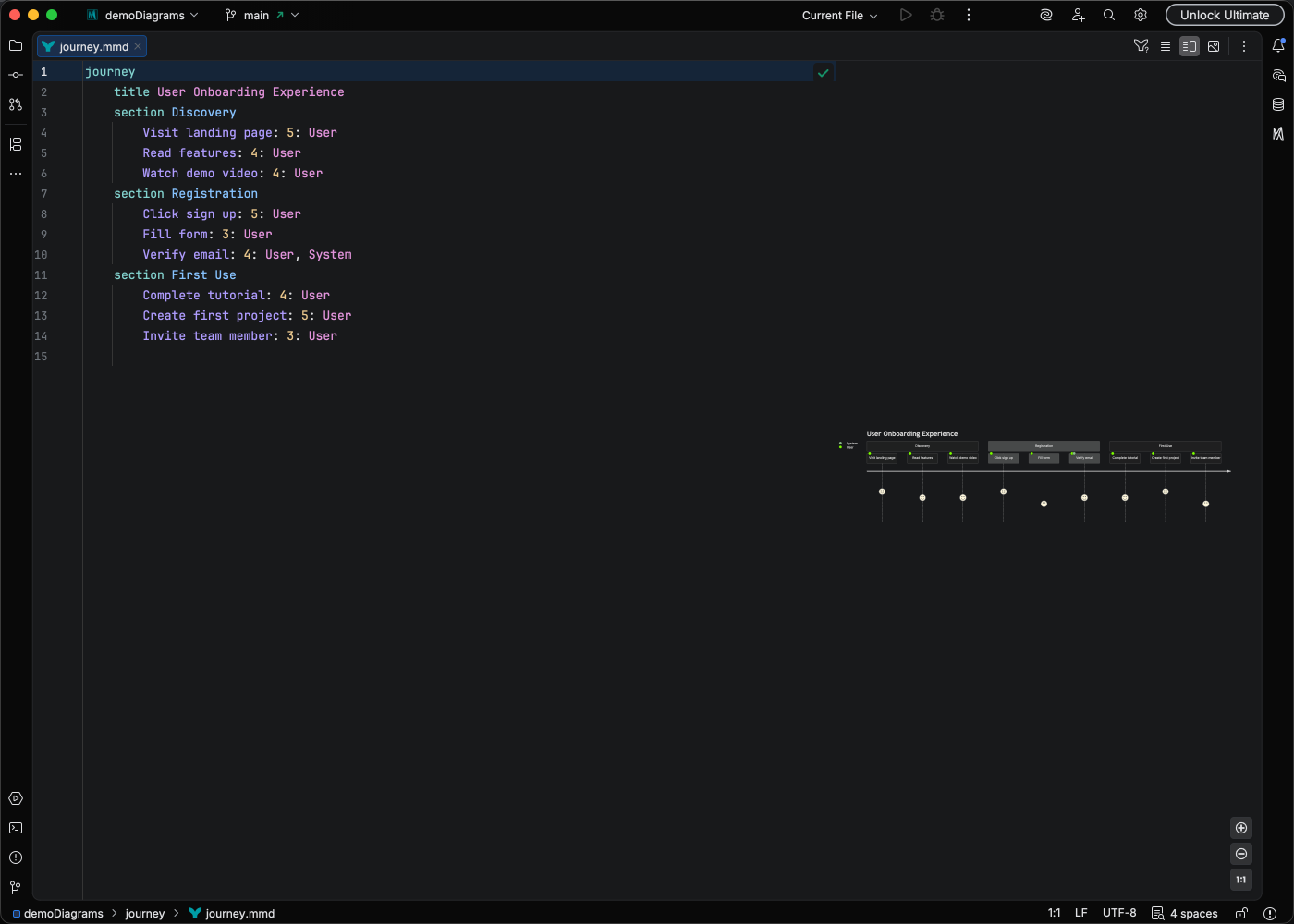

User Journey

Map customer experiences.

journey
    title User Onboarding
    section Sign Up
        Visit website: 5: User
        Create account: 3: User
    section First Use
        Complete tutorial: 4: User
        Create first project: 5: User

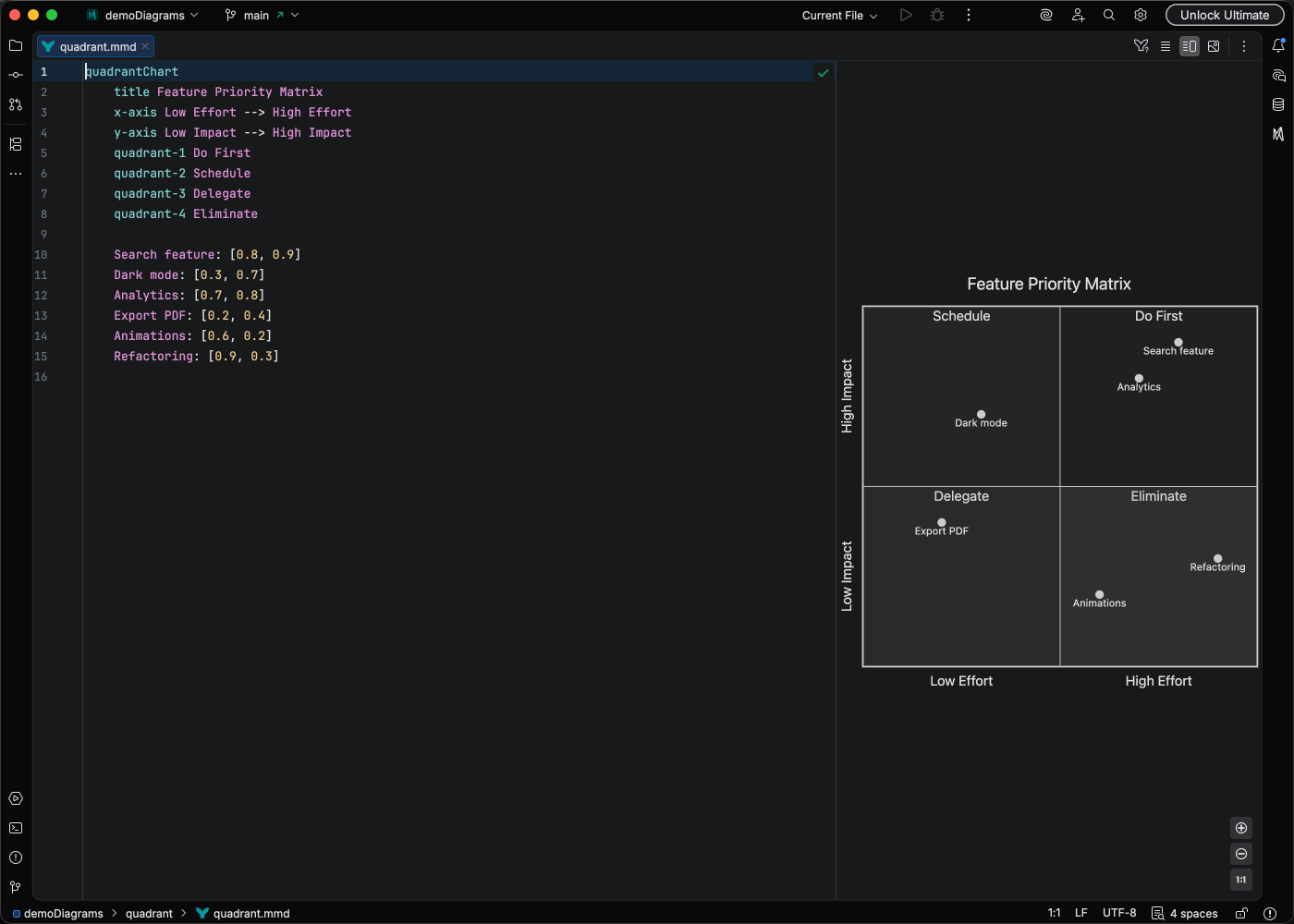

Quadrant Chart

Four-quadrant analysis visualization.

quadrantChart
    title Priority Matrix
    x-axis Low Effort --> High Effort
    y-axis Low Impact --> High Impact
    quadrant-1 Quick Wins
    quadrant-2 Major Projects
    quadrant-3 Fill-ins
    quadrant-4 Thankless Tasks
    Feature A: [0.3, 0.8]
    Feature B: [0.7, 0.9]

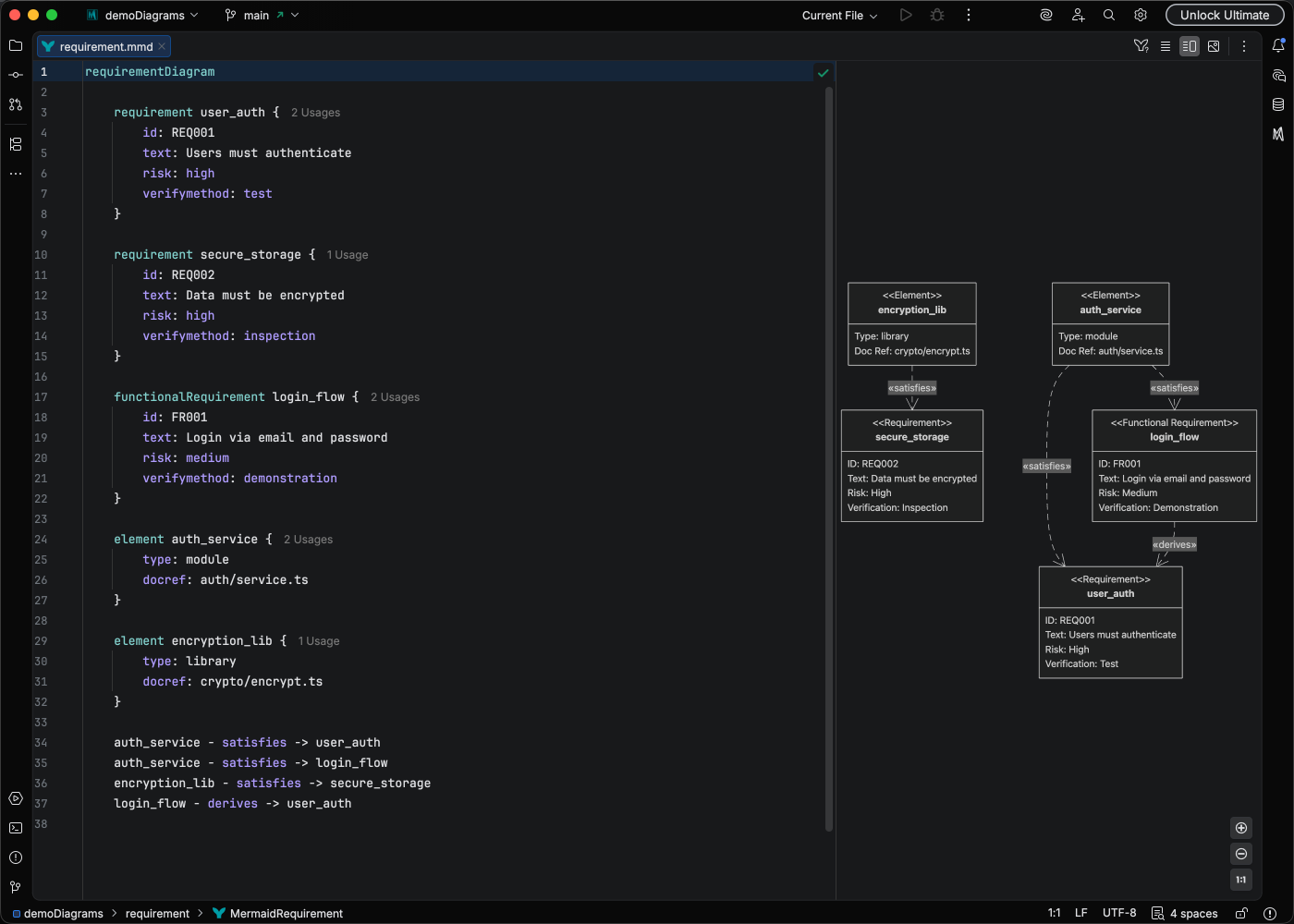

Requirement Diagram

Document system requirements and relationships.

requirementDiagram
    requirement UserAuth {
        id: REQ-001
        text: System shall authenticate users
        risk: high
        verifymethod: test
    }
    element LoginService {
        type: module
    }
    LoginService - satisfies -> UserAuth

C4 Diagram

Software architecture using the C4 model.

C4Context
    title System Context Diagram
    Person(user, "User", "A user of the system")
    System(system, "My System", "The system being built")
    System_Ext(email, "Email System", "Sends emails")

    Rel(user, system, "Uses")
    Rel(system, email, "Sends emails using")

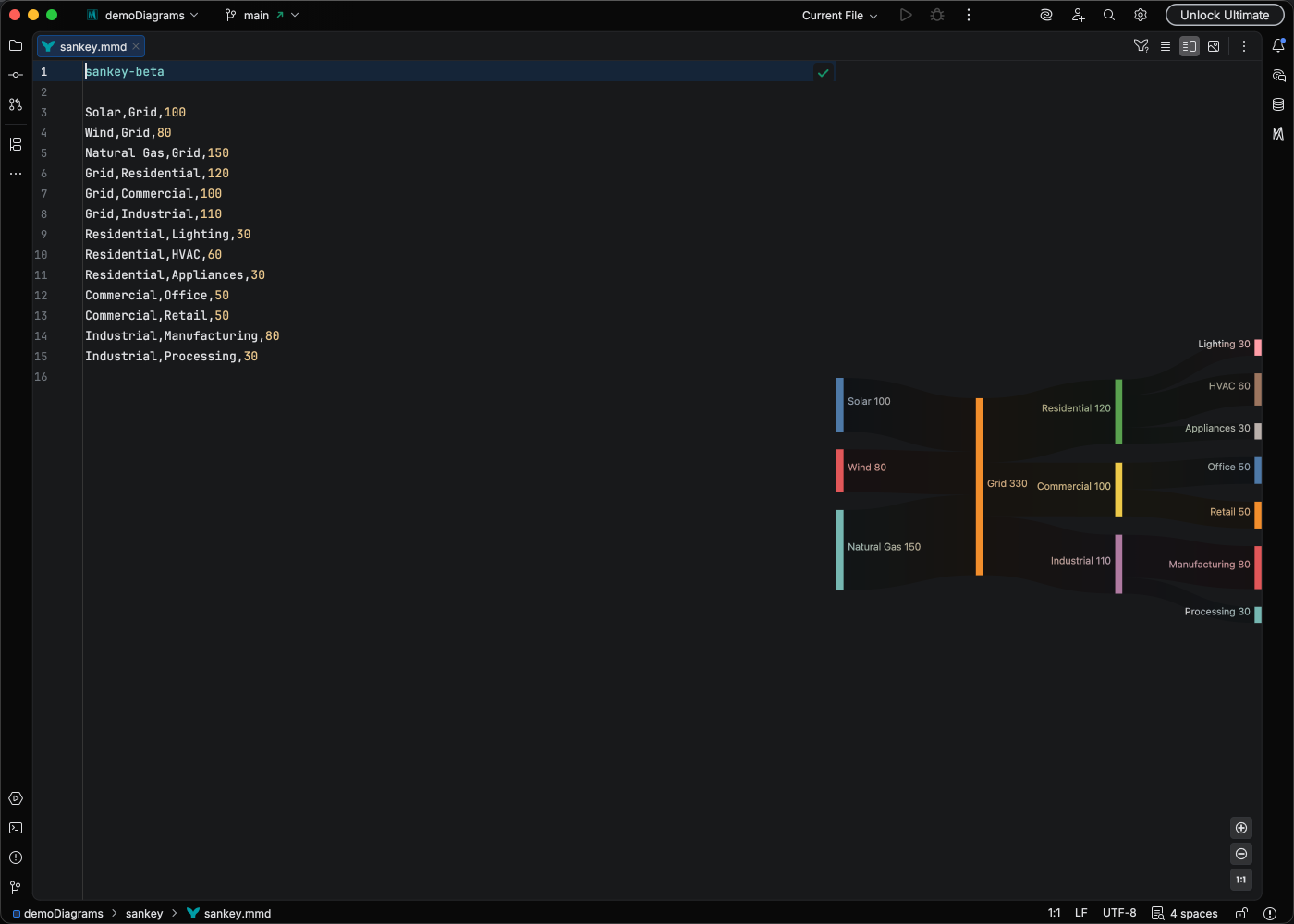

Sankey Diagram

Flow diagrams with proportional arrows.

sankey-beta
    Source1,Target1,100
    Source1,Target2,50
    Source2,Target2,75

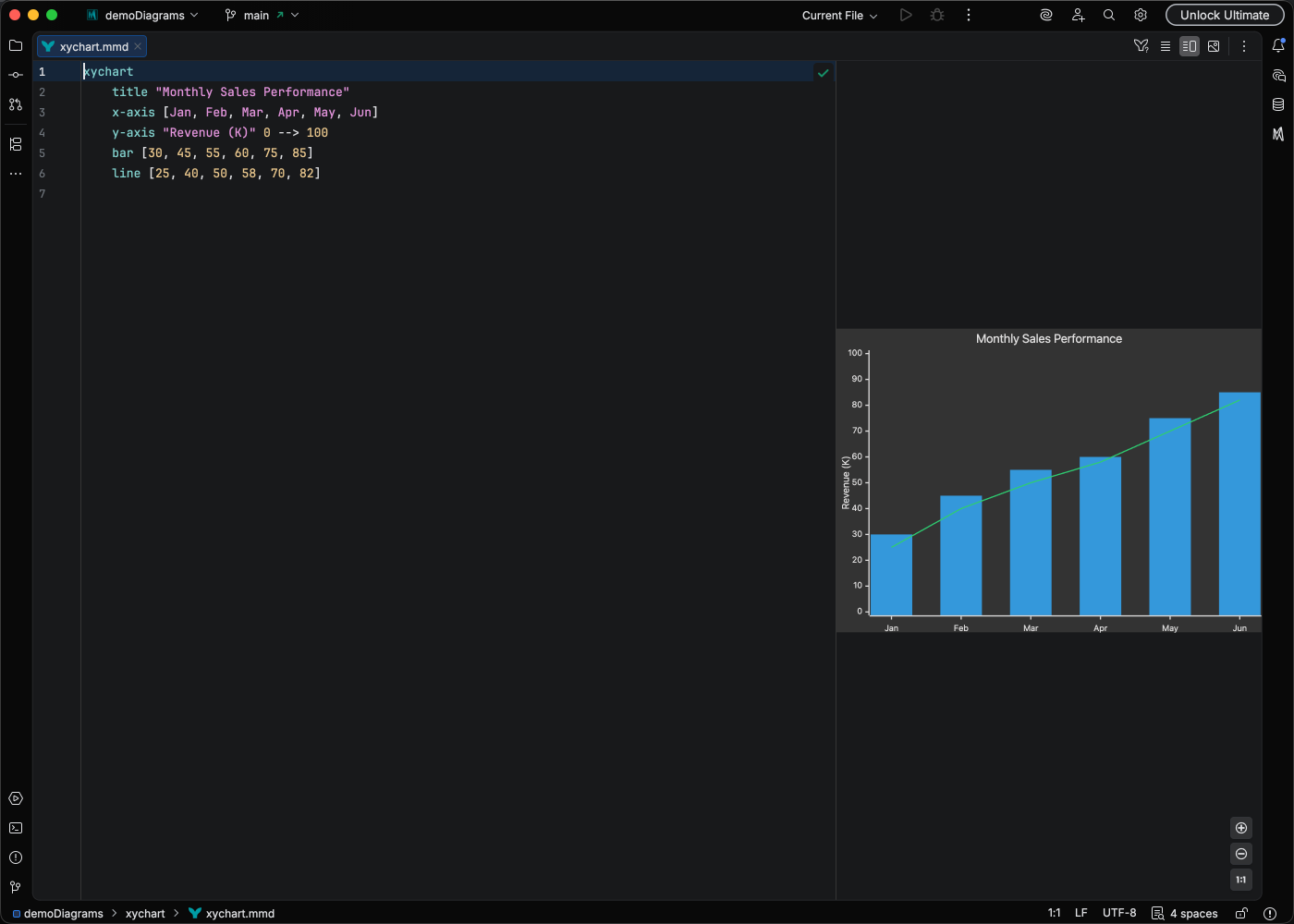

XY Chart

General purpose charting for data visualization.

xychart-beta
    title "Sales Revenue"
    x-axis [Jan, Feb, Mar, Apr, May]
    y-axis "Revenue (k$)" 0 --> 100
    bar [50, 60, 75, 80, 95]
    line [50, 60, 75, 80, 95]

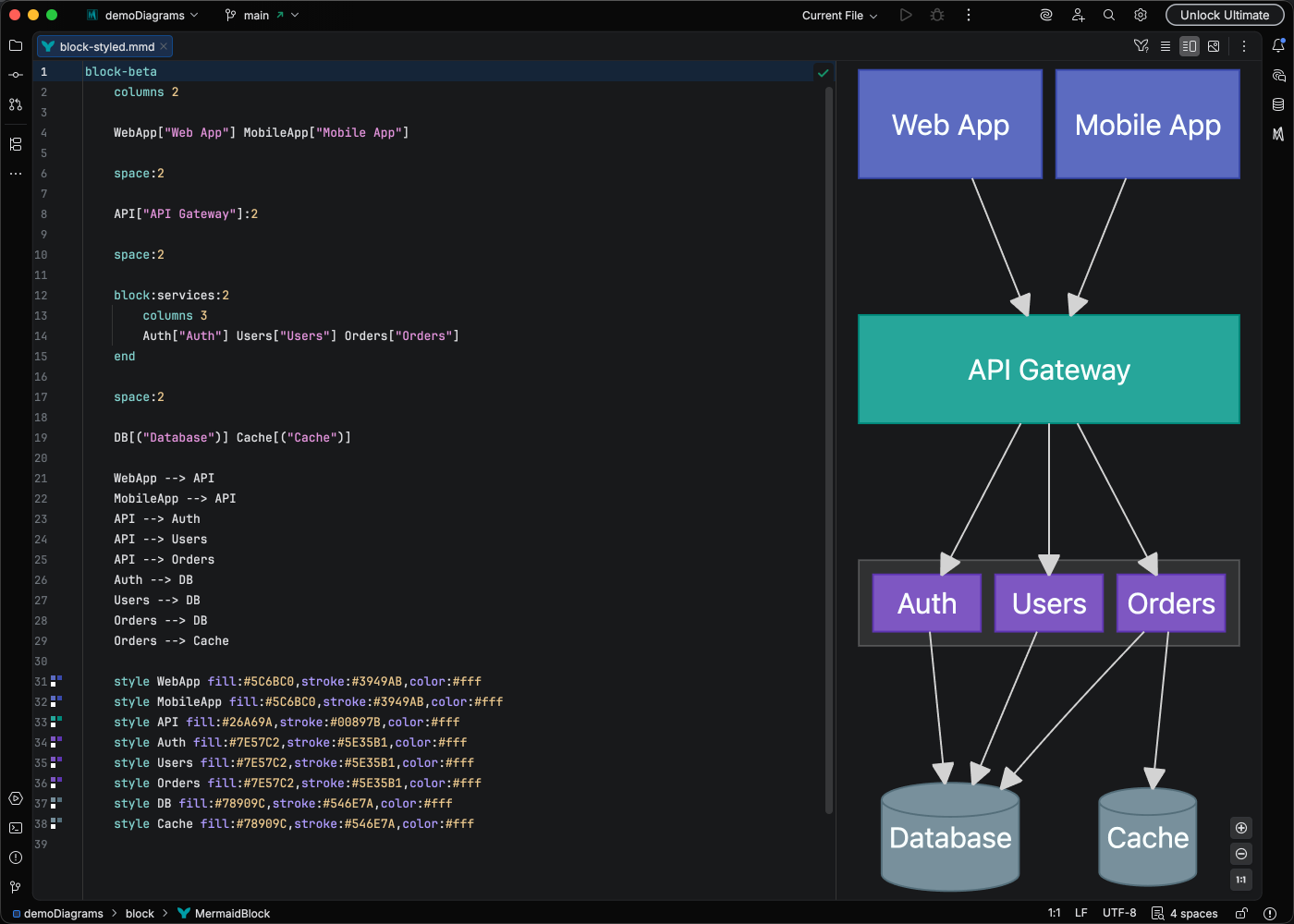

Block Diagram

Block-based architectural diagrams.

block-beta
    columns 3
    a["Frontend"] b["API"] c["Database"]
    a --> b --> c

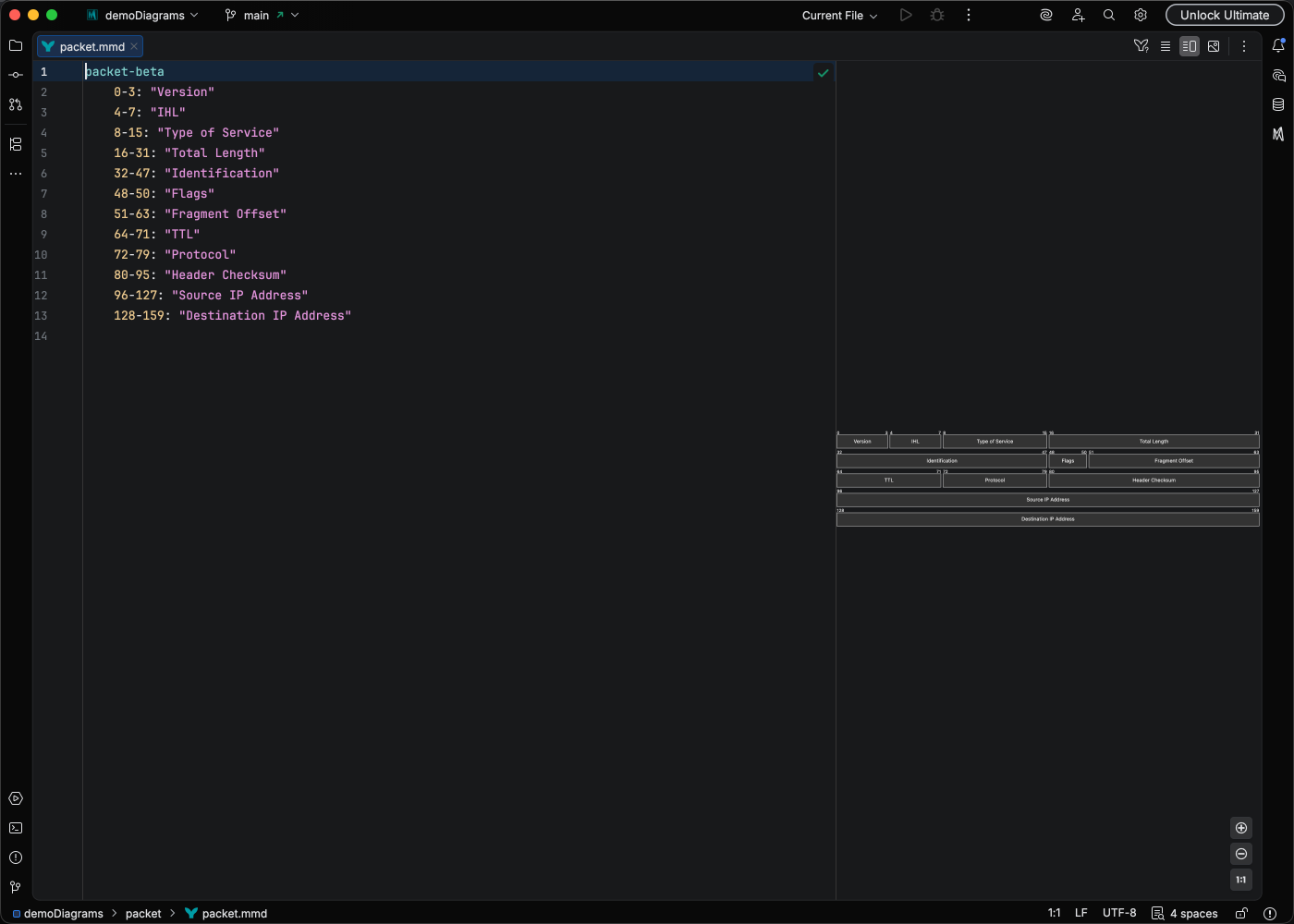

Packet Diagram

Network packet structure visualization.

packet-beta
    0-15: "Source Port"
    16-31: "Destination Port"
    32-63: "Sequence Number"
    64-95: "Acknowledgment Number"

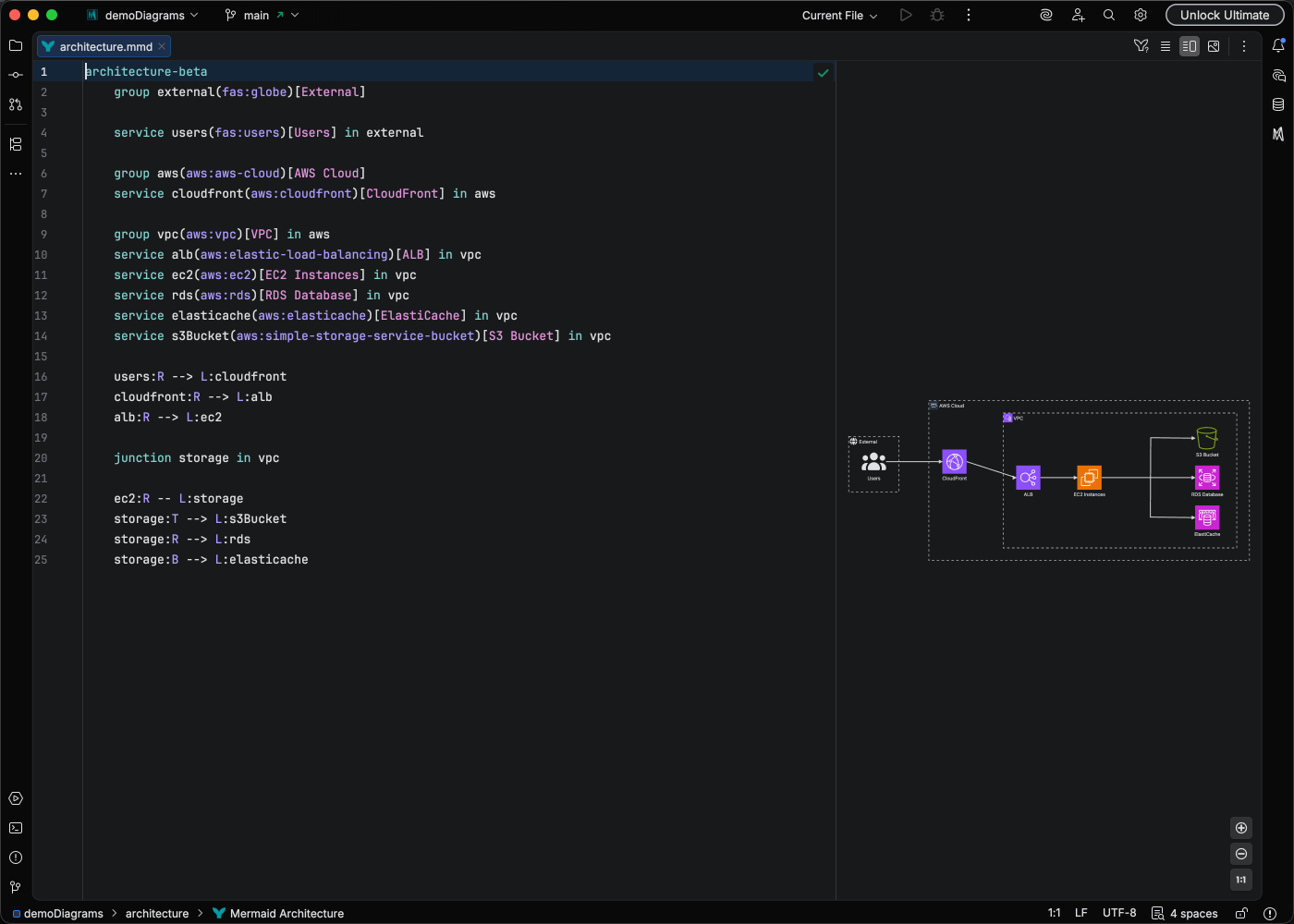

Architecture Diagram

System architecture visualization.

architecture-beta
    group cloud(cloud)[Cloud]
    service api(server)[API] in cloud
    service db(database)[Database] in cloud
    api:R --> L:db

File Extensions

Mermaid Studio recognizes files with .mmd and .mermaid extensions. The diagram type is automatically detected from the content.

Markdown Integration

All diagram types work within Markdown code blocks:

# My Documentation

```mermaid
flowchart LR
    A --> B --> C
```

The Mermaid code block receives full language support including syntax highlighting, validation, and preview.
